Indoor Cables

Multi Mode

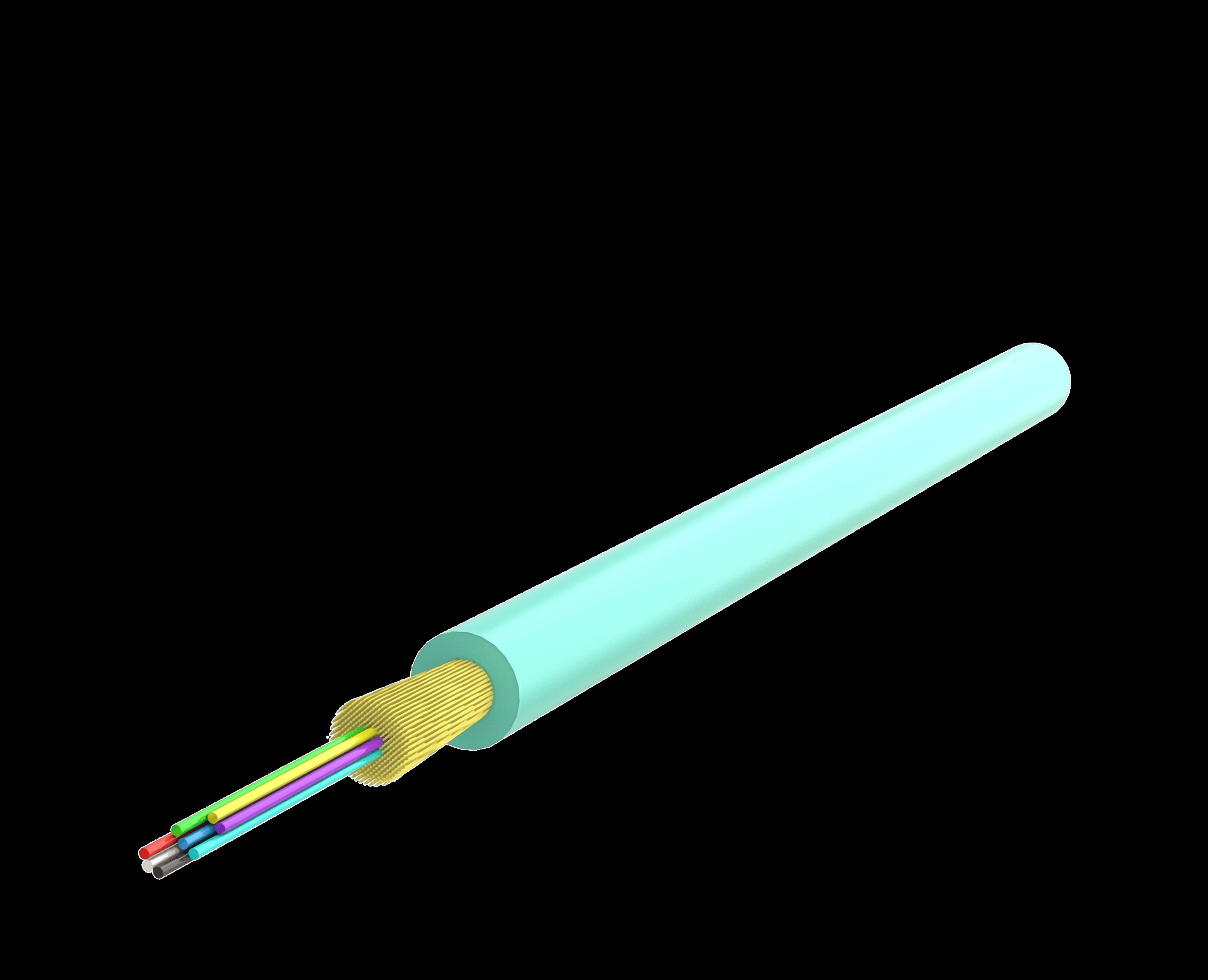

Multi-mode fiber (MMF) indoor tight buffer cables are designed for high-speed, short to medium-distance data transmission in indoor environments. The Cables are commonly used in local area networks (LANs), data centers, and enterprise networks. Each individual fiber is coated with a tight buffer layer, which provides physical protection and simplifies handling and termination. The fibers are bundled together and enclosed in a protective outer jacket made of LSZH flame-retardant material suitable for indoor use.

Features & Benefits

900 Microns tight buffered fibers support fast field installations
Operates at wavelengths of 850 nm and 1300 nm
Supporting applications: 10 Gigabit Ethernet (10GBase-SR) and beyond
UV resistant
High modulus, aramid yarn as a peripheral strength member
Compliant with ANSI/TIA-568.3-D, ISO/IEC 11801
OM3/OM4/OM5 variants
Cables are specifically designed for indoor applications, mainly used in intra-building backbones
Availability from 04 to 144 cores
Jacket options: LSZH, Aqua
Options for Plenum/Riser rated jackets

Part Number	Product Description
FFLM3STXX	INDOOR LOW SMOKE ZERO HALOGEN (LSZH) BREAKOUT CABLES ARE PERFECTLY SUITED FOR RUGGED APPLICATIONS AND INSTALLATIONS REQUIRING INCREASED PERFORMANCE. LSZH-RATED I/O BREAKOUT CABLES ARE AVAILABLE FROM 04-24 COUNT WITH VARIABLE SUB-CABLE DIMENSIONS TO SUPPORT SPECIFIC TERMINATION AND ROUTING REQUIREMENTS. THE OFFERED CABLES ARE FULLY COMPLIANT WITH THE RELEVANT IEC SPECIFICATIONS. EACH INDIVIDUAL FIBER IS COATED WITH A TIGHT BUFFER LAYER, WHICH PROVIDES PHYSICAL PROTECTION AND SIMPLIFIES HANDLING AND TERMINATION.	View Product
FFLM3MTXX	INDOOR LOW SMOKE ZERO HALOGEN (LSZH) BREAKOUT CABLES ARE PERFECTLY SUITED FOR RUGGED APPLICATIONS AND INSTALLATIONS REQUIRING INCREASED PERFORMANCE. LSZH-RATED I/O BREAKOUT CABLES ARE AVAILABLE FROM 48-144 COUNT WITH VARIABLE SUB-CABLE DIMENSIONS TO SUPPORT SPECIFIC TERMINATION AND ROUTING REQUIREMENTS. THE OFFERED CABLES ARE FULLY COMPLIANT WITH THE RELEVANT IEC SPECIFICATIONS. EACH INDIVIDUAL FIBER IS COATED WITH A TIGHT BUFFER LAYER, WHICH PROVIDES PHYSICAL PROTECTION AND SIMPLIFIES HANDLING AND TERMINATION.	View Product
FFLM4STXX	INDOOR LOW SMOKE ZERO HALOGEN (LSZH) BREAKOUT CABLES ARE PERFECTLY SUITED FOR RUGGED APPLICATIONS AND INSTALLATIONS REQUIRING INCREASED PERFORMANCE. LSZH-RATED I/O BREAKOUT CABLES ARE AVAILABLE FROM 04-24 COUNT WITH VARIABLE SUB-CABLE DIMENSIONS TO SUPPORT SPECIFIC TERMINATION AND ROUTING REQUIREMENTS. THE OFFERED CABLES ARE FULLY COMPLIANT WITH THE RELEVANT IEC SPECIFICATIONS. EACH INDIVIDUAL FIBER IS COATED WITH A TIGHT BUFFER LAYER, WHICH PROVIDES PHYSICAL PROTECTION AND SIMPLIFIES HANDLING AND TERMINATION.	View Product
FFLM4MTXX	INDOOR LOW SMOKE ZERO HALOGEN (LSZH) BREAKOUT CABLES ARE PERFECTLY SUITED FOR RUGGED APPLICATIONS AND INSTALLATIONS REQUIRING INCREASED PERFORMANCE. LSZH-RATED I/O BREAKOUT CABLES ARE AVAILABLE FROM 48-144 COUNT WITH VARIABLE SUB-CABLE DIMENSIONS TO SUPPORT SPECIFIC TERMINATION AND ROUTING REQUIREMENTS. THE OFFERED CABLES ARE FULLY COMPLIANT WITH THE RELEVANT IEC SPECIFICATIONS. EACH INDIVIDUAL FIBER IS COATED WITH A TIGHT BUFFER LAYER, WHICH PROVIDES PHYSICAL PROTECTION AND SIMPLIFIES HANDLING AND TERMINATION.	View Product
