Patch Cords & Pigtails

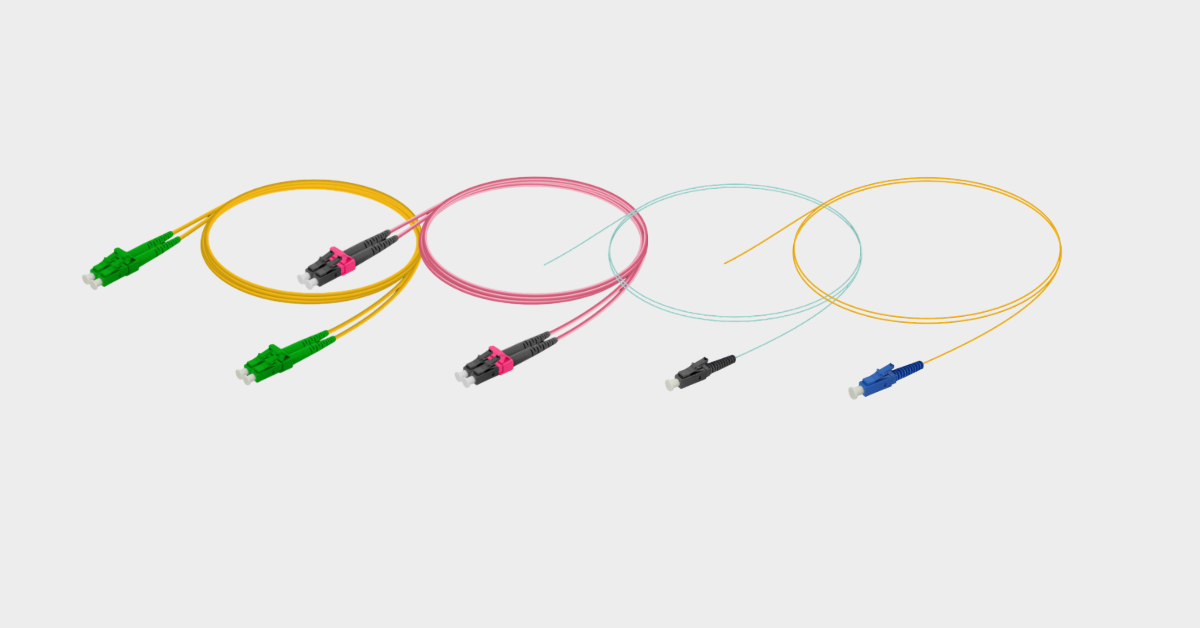

Fiber optic patch cords consist of two tight-buffered fibers within a single outer jacket. Each end is fitted with high-performance connectors, including SC, CS, ST, FC, LC, MTRJ, and E2000, available in simplex and duplex configurations. These patch cords meet IEC-60332 LSZH flame rating standards for safety compliance.

Features & Benefits
  • Available in UPC/APC Connectors
  • Bend insensitive fibers
  • Conformance to ANSI/TIA-568.3-D, ITU-T G.657.A1 (Compatible with G.652.D), IEC 61300-3-4, IEC 61300-3-6, IEC 60874-1, ISO/IEC 11801.
  • LSZH jacket, meets IEC-60332 (LSZH) flame rating for standard safety compliant
  • Duplex and Simplex versions, uniform and hybrid patch cord versions available.
  • Available in OS2, OM3, OM4 & OM5.
Part Number Product Description
FPGS2AXC02 OS2 FIBER OPTIC PIGTAIL SUITABLE FOR COMMON SPLICING APPLICATIONS SUPPLIED IN A 1-METER LENGTH 900μM TIGHT BUFFERED FIBER CABLE WITH A YELLOW JACKET. PIGTAIL MEETS THE REQUIREMENT OF ANSI/TIA 568.D-2 COMPLIANCE. PIGTAILS ARE 900 MICRO TIGHT BUFFERED AND ONE END IS FACTORY TERMINATED AND ANOTHER END AS NOT CONNECTORIZED. SINGLE MODE PIGTAILS ARE ITUG-T.657A2 GRADED FIBER TYPES AND ARE AVAILABLE WITH APC AND UPC CONNECTORS. IN MULTIMODE HAS UPC SC OR LC TYPE CONNECTORIZED PIGTAILS. STANDARD LENGTHS ARE 1, 1.5 AND 2 METERS. View Product
FPCS2AC1C2XX PATCH CORDS ARE AVAILABLE IN SINGLE MODE OS2 ITUG657 A2/ 652.D AND MULTI-MODE OM3/OM4 CATEGORIES. ALL PATCH CORDS ARE WITH TIGHT BUFFERED CONSTRUCTION, AND BOTH ENDS AND ARE PRE-TERMINATED WITH EITHER SC OR LC CONNECTORS COME IN SIMPLEX OR DUPLEX CORDS. PATCH CORD CABLE JACKET CONSTRUCTED WITH LSZH-RATED MATERIAL. LOW INSERTION LOSS ANGLED PHYSICAL CONTACT (APC), ULTRA–PHYSICAL CONTACT (UPC) STRAIGHT CORD OR COMBINED HYBRID TYPE CORDS WITH DIFFERENT LENGTHS ARE AVAILABLE. THE PATCH CORDS SHALL BE COMPLIANT WITH ANSI/TIA-568.3-D STANDARD. View Product
FPGS2UXC01 OS2 FIBER OPTIC PIGTAIL SUITABLE FOR COMMON SPLICING APPLICATIONS SUPPLIED IN A 1-METER LENGTH 900μM TIGHT BUFFERED FIBER CABLE WITH A YELLOW JACKET. PIGTAIL MEETS THE REQUIREMENT OF ANSI/TIA 568.D-2 COMPLIANCE. PIGTAILS ARE 900 MICRO TIGHT BUFFERED AND ONE END IS FACTORY TERMINATED AND ANOTHER END AS NOT CONNECTORIZED. SINGLE MODE PIGTAILS ARE ITUG-T.657A2 GRADED FIBER TYPES AND ARE AVAILABLE WITH APC AND UPC CONNECTORS. IN MULTIMODE HAS UPC SC OR LC TYPE CONNECTORIZED PIGTAILS. STANDARD LENGTHS ARE 1, 1.5 AND 2 METERS. View Product
FPCS2UC1C2XX PATCH CORDS ARE AVAILABLE IN SINGLE MODE OS2 ITUG657 A2/ 652.D AND MULTI-MODE OM3/OM4 CATEGORIES. ALL PATCH CORDS ARE WITH TIGHT BUFFERED CONSTRUCTION, AND BOTH ENDS AND ARE PRE-TERMINATED WITH EITHER SC OR LC CONNECTORS COME IN SIMPLEX OR DUPLEX CORDS. PATCH CORD CABLE JACKET CONSTRUCTED WITH LSZH-RATED MATERIAL. LOW INSERTION LOSS ANGLED PHYSICAL CONTACT (APC), ULTRA–PHYSICAL CONTACT (UPC) STRAIGHT CORD OR COMBINED HYBRID TYPE CORDS WITH DIFFERENT LENGTHS ARE AVAILABLE. THE PATCH CORDS SHALL BE COMPLIANT WITH ANSI/TIA-568.3-D STANDARD. View Product
FPGMXUYC02 MM FIBER OPTIC PIGTAIL SUITABLE FOR COMMON SPLICING APPLICATIONS SUPPLIED IN A 1-METER LENGTH 900μM TIGHT BUFFERED FIBER CABLE WITH A AQUA JACKET. PIGTAIL MEETS THE REQUIREMENT OF ANSI/TIA 568.D-2 COMPLIANCE. PIGTAILS ARE 900 MICRO TIGHT BUFFERED AND ONE END IS FACTORY TERMINATED AND ANOTHER END AS NOT CONNECTORIZED. SINGLE MODE PIGTAILS ARE ITUG-T.657A2 GRADED FIBER TYPES AND ARE AVAILABLE WITH APC AND UPC CONNECTORS. IN MULTIMODE HAS UPC SC OR LC TYPE CONNECTORIZED PIGTAILS. STANDARD LENGTHS ARE 1, 1.5 AND 2 METERS. View Product
FPCMXUC1UC2YY PATCH CORDS ARE AVAILABLE IN SINGLE MODE OS2 ITUG657 A2/ 652.D AND MULTI-MODE OM3/OM4 CATEGORIES. ALL PATCH CORDS ARE WITH TIGHT BUFFERED CONSTRUCTION, AND BOTH ENDS AND ARE PRE-TERMINATED WITH EITHER SC OR LC CONNECTORS COME IN SIMPLEX OR DUPLEX CORDS. PATCH CORD CABLE JACKET CONSTRUCTED WITH LSZH-RATED MATERIAL. LOW INSERTION LOSS ANGLED PHYSICAL CONTACT (APC), ULTRA–PHYSICAL CONTACT (UPC) STRAIGHT CORD OR COMBINED HYBRID TYPE CORDS WITH DIFFERENT LENGTHS ARE AVAILABLE. THE PATCH CORDS SHALL BE COMPLIANT WITH ANSI/TIA-568.3-D STANDARD. View Product
