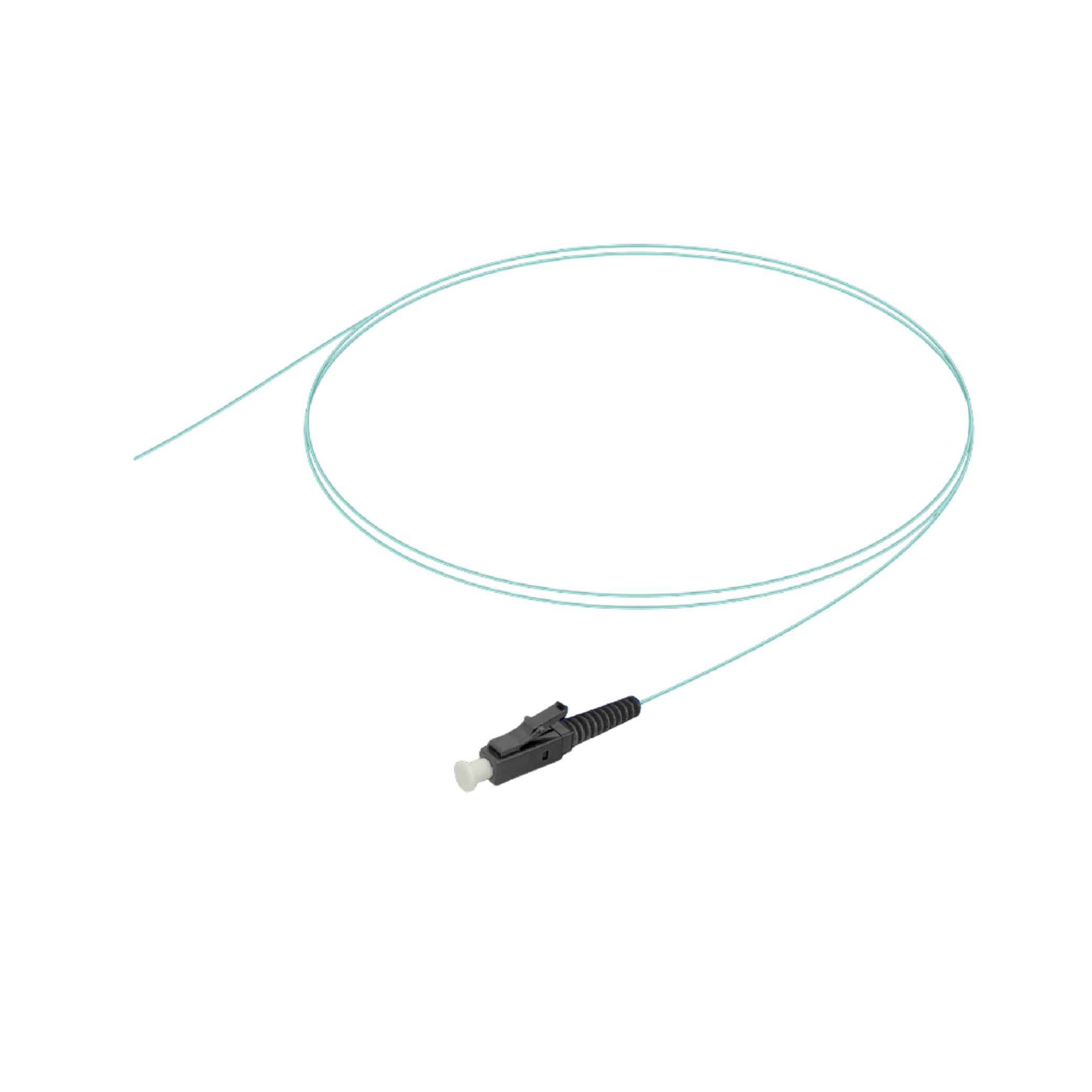

LC/SC Multimode OM3/OM4/OM5 pigtail, 900um buffered fibre,1 Mtr

FPGMxUyC02

MM Fiber optic pigtail suitable for common splicing applications supplied in a 1-meter length 900μm tight buffered fiber cable with a Aqua jacket. Pigtail meets the requirement of ANSI/TIA 568.D-2 compliance. Pigtails are 900 micro tight buffered and one end is factory terminated and another end as not connectorized. Single Mode pigtails are ITUG-T.657A2 graded fiber types and are available with APC and UPC connectors. In multimode has UPC SC or LC type connectorized pigtails. Standard lengths are 1, 1.5 and 2 Meters.

Application

Telecom, FTTH, Optical CATV and LAN applications.
On-site termination.
Patch Panels, wall boxes, ODFs and splice cassettes, dome and inline splicing enclosure.
Optical fiber communication system.

Specifications & Features

Low insertion loss.
High return loss.
Made of high-quality ABS, anti-collision, Flame retardant, and Resistance to impact.
Complied with ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-3 (FOCIS-3), TIA-604-10 (FOCIS-10).
ITU-T G652.D OS2.
ITU-T G657 A2.

Specifications Features

{ "Range_of_mode": [ "Single Mode", "Multi-Mode" ], "Connector_type": [ "SC/APC", "LC/APC (SM)", "SC/UPC", "LC/UPC (SM & MM)" ], "Polish_or_ferrule_interface_type": [ "APC", "UPC" ], "Cable_diameter": "0.9mm", "Outer_jacket": "PVC", "Buffer_colour": [ "Yellow", "Aqua" ], "Operating_temperature": "-25° to 70°", "Storage_temperature": "-25° to 70°" }
