Outdoor Cables

Single Mode

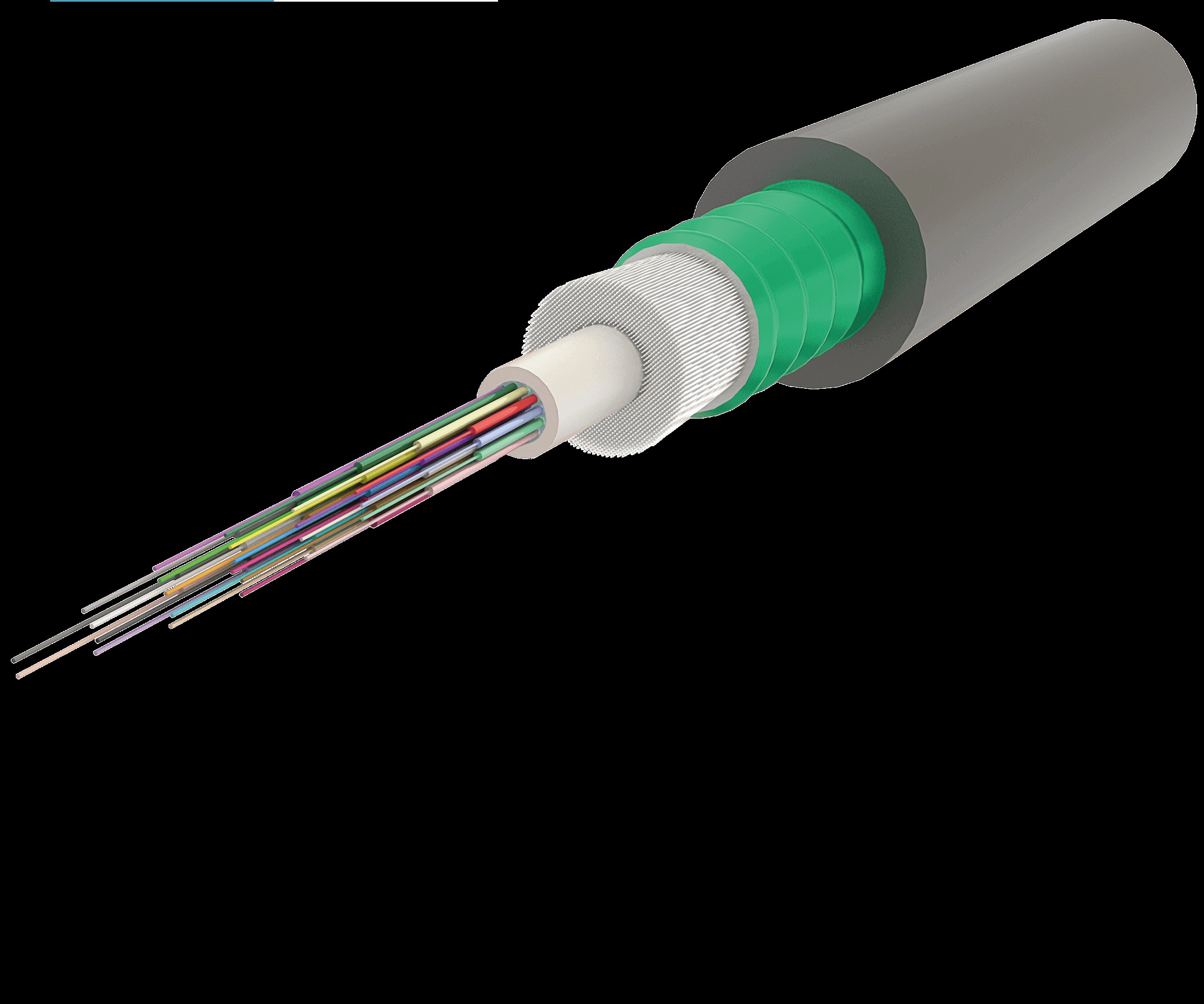

Outdoor fiber cables suitable for installation in ducts, tunnels, direct burial and other applications where impact protections and circuit integrity are critical. The cables are used for a variety of applications, including long-distance data transmission and telecommunications. The fibers are contained within loose tubes filled with a gel or water-resistant material to protect the fibers from environmental factors and mechanical stress. The PE outer jacket is designed to withstand various environmental conditions, including UV radiation, moisture, and temperature fluctuations.

Features & Benefits

Operates at 1310 nm and 1550 nm wavelengths
Loose buffer tubes fully filled and centrally placed in the cable
Compliant with ISO/IEC 11801, IEC 60794
Up to 288 fibers enhance single mode fibers in full compliance with G652D
Outer sheath of PE, black
Single gel-filled loose-tube to block the ingress of water
Fiber counts – color-coded according to TIA-598-D
Customizable fiber selection
Armored/non-armored variants

Part Number	Product Description
FFES2SLXX	OUTDOOR PE LOOSE TUBE CABLES ARE PERFECTLY SUITABLE FOR INSTALLATION IN DUCTS, TUNNELS, AND OTHER APPLICATIONS WHERE IMPACT PROTECTIONS AND CIRCUIT INTEGRITY ARE CRITICAL. PE-RATED OUTDOOR LOOSE UNI-TUBE CABLES ARE AVAILABLE FROM 04-24 COUNT WITH VARIABLE SUB-CABLE DIMENSIONS TO SUPPORT SPECIFIC TERMINATION AND ROUTING REQUIREMENTS. THE OFFERED CABLES ARE FULLY COMPLIANT WITH THE RELEVANT IEC SPECIFICATIONS. THE SINGLE LOOSE TUBE CABLES CONSIST OF 04 TO 24, 250µM OPTICAL FIBERS IN A SINGLE GEL FILLED LOOSE TUBE WITH E-GLASS NON-METALLIC STRENGTH MEMBERS AND BLACK PE, UV RESISTANT JACKET WITH RIPCORD.	View Product
FFES2MLXX	OUTDOOR PE LOOSE TUBE CABLES ARE PERFECTLY SUITABLE FOR INSTALLATION IN DUCTS, TUNNELS, AND OTHER APPLICATIONS WHERE IMPACT PROTECTIONS AND CIRCUIT INTEGRITY ARE CRITICAL. PE-RATED OUTDOOR LOOSE MULTI-TUBE CABLES ARE AVAILABLE FROM 48-288 COUNT WITH VARIABLE SUB-CABLE DIMENSIONS TO SUPPORT SPECIFIC TERMINATION AND ROUTING REQUIREMENTS. THE OFFERED CABLES ARE FULLY COMPLIANT WITH THE RELEVANT IEC SPECIFICATIONS. THE MULTI LOOSE TUBE CABLE CONSTRUCTION CONSISTS OF UP TO 288, 250µM OPTICAL FIBERS IN 12 FIBER GEL FILLED LOOSE TUBES WITH FILLERS WHERE APPROPRIATE, SZ STRANDED AROUND A FIBER REINFORCED PLASTIC (FRP) CENTRAL STRENGTH MEMBER WITH WATER SWELLABLE THREADS AND WATER SWELLABLE TAPE.	View Product
FFES2SLXXA	OUTDOOR ARMORED CENTRAL LOOSE TUBE SINGLE JACKET PE FIBER OPTIC CABLES ARE TYPICALLY USED FOR BOTH MAINLY OUTDOOR APPLICATIONS. PE-RATED OUTDOOR LOOSE UNI-TUBE CABLES ARE AVAILABLE FROM 04-24 COUNT WITH VARIABLE SUB-CABLE DIMENSIONS TO SUPPORT SPECIFIC TERMINATION AND ROUTING REQUIREMENTS. OUTDOOR CABLE SUITABLE FOR INSTALLATION IN DUCTS, TUNNELS, DIRECT BURIAL, AND OTHER APPLICATIONS WHERE IMPACT PROTECTION AND CIRCUIT INTEGRITY ARE CRITICAL.	View Product
FFES2MLXXA	OUTDOOR ARMORED CENTRAL LOOSE TUBE SINGLE JACKET PE FIBER OPTIC CABLES ARE TYPICALLY USED FOR BOTH MAINLY OUTDOOR APPLICATIONS. PE-RATED OUTDOOR LOOSE MULTI-TUBE CABLES ARE AVAILABLE FROM 48-288 COUNT WITH VARIABLE SUB-CABLE DIMENSIONS TO SUPPORT SPECIFIC TERMINATION AND ROUTING REQUIREMENTS. OUTDOOR CABLE SUITABLE FOR INSTALLATION IN DUCTS, TUNNELS, DIRECT BURIAL, AND OTHER APPLICATIONS WHERE IMPACT PROTECTION AND CIRCUIT INTEGRITY ARE CRITICAL.	View Product
