FFES2MLxx

FABNET Fiber OS2 Singlemode Outdoor Multi Loose tube 48 to 288 core PE Bulk Cable, Black

FFES2MLxx
FFES2MLxx

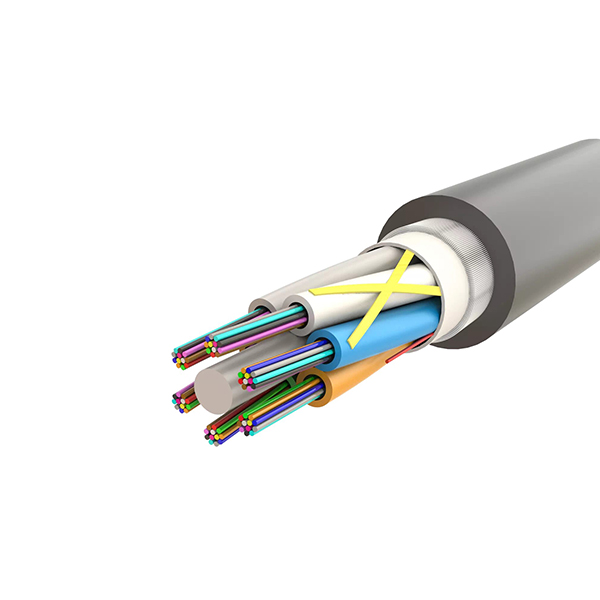

Outdoor PE Loose tube Cables are perfectly suitable for installation in ducts, tunnels, and other applications where impact protections and circuit integrity are critical. PE-rated outdoor Loose Multi-tube cables are available from 48-288 count with variable sub-cable dimensions to support specific termination and routing requirements. The offered cables are fully compliant with the relevant IEC specifications. The multi loose tube cable construction consists of up to 288, 250µm optical fibers in 12 fiber gel filled loose tubes with fillers where appropriate, SZ stranded around a fiber reinforced plastic (FRP) central strength member with water swellable threads and water swellable tape.

Application
Applications
  • Operates at wavelengths of 1310 nm and 1550 nm.
  • Cables are specifically designed for outdoor duct applications, mainly used in intra-building.
  • Suitable for environments where rodent resistance is required.
Specifications & Features
  • Compliant with ANSI/TIA-568.3-D, ISO/IEC 11801
  • Jacket options: PE, Black
  • Compact 250µm loose tube construction.
  • High Modulus, Aramid yarn as a peripheral strength member.
  • Water resistant & UV resistant
  • Materials compliant to RoHS, REACH.

Specifications Features
{ "Fiber Type": "Single mode 9/125 G652.D", "Number of cores": "48 to 288", "Type of tube": "Loose", "Number of Tubes": "Multi", "Category": "OS2", "Strength Member": "E-glass Yarns", "Color of Fibers in Per Tube": [ "Blue", "Orange", "Green", "Brown", "Gray", "White", "Red", "Black", "Yellow", "Violet", "Pink", "Aqua", "Blue with black tracer", "Orange with black tracer", "Green with black tracer", "Brown with black tracer", "Gray with black tracer", "White with black tracer", "Red with black tracer", "Natural", "Yellow with black tracer", "Violet with black tracer", "Rose with black tracer", "Aqua with black tracer" ], "Tube Material": "PBT", "Tube Filling Compound": "Thixotropic Jelly", "Outer Jacket Colors": "SM-Black", "Strength Element": "Swellable Glass Yarn", "Outer sheath material": "PE", "Outer diameter approx.": "12.5 to 26.5 mm" }
