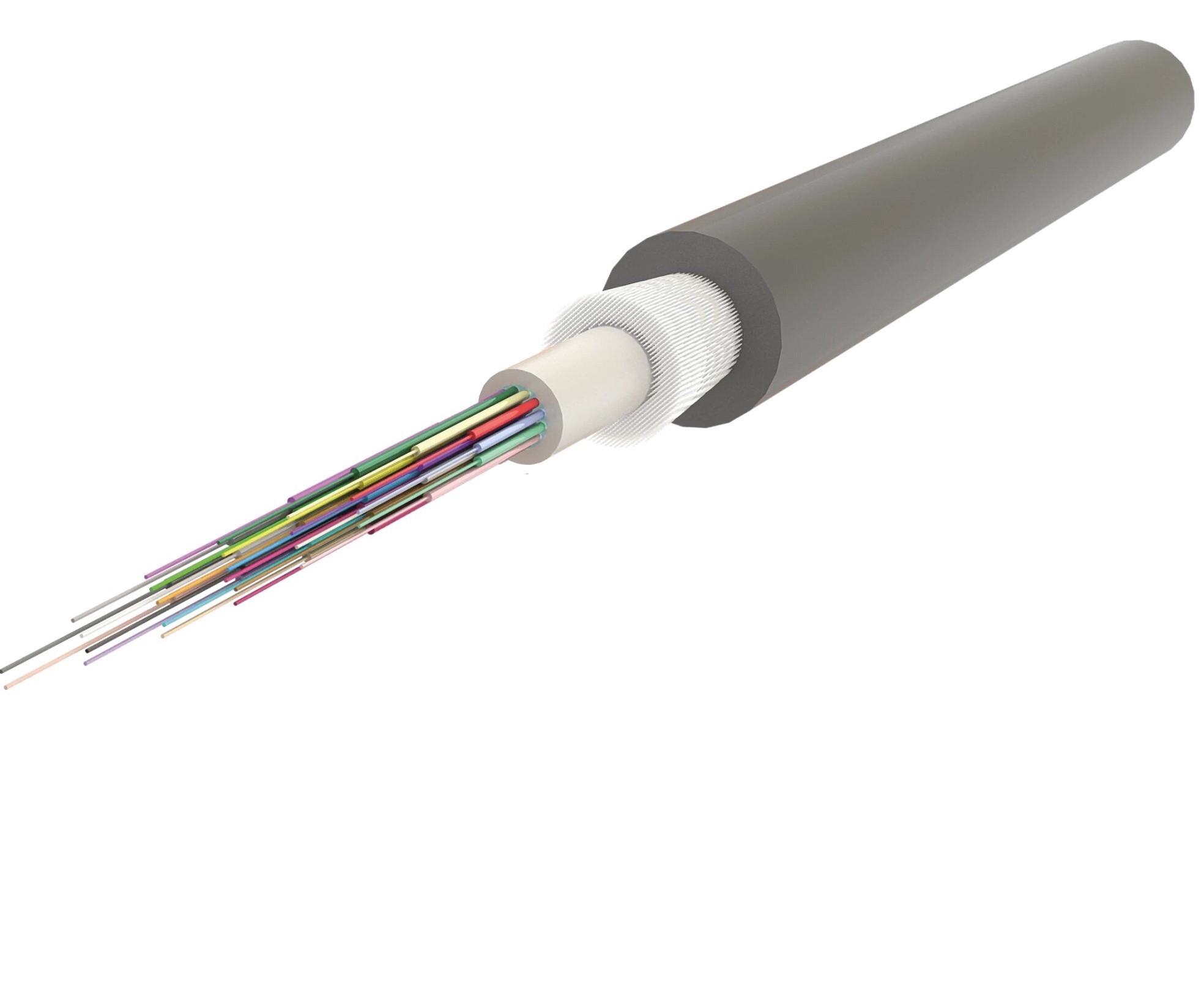

Indoor/Outdoor Cables

Single Mode

Indoor/outdoor loose tube single-mode fiber cables are designed to provide flexible, high-performance fiber optic connectivity in both indoor and outdoor environments. The cables are used for a variety of applications, including long-distance data transmission and telecommunications. The fibers are contained within loose tubes filled with a gel or water-resistant material to protect the fibers from environmental factors and mechanical stress. The LSZH outer jacket is designed to withstand various environmental conditions, including UV radiation, moisture, and temperature fluctuations.

Features & Benefits

Operates at 1310 nm and 1550 nm wavelengths
Loose buffer tubes fully filled and centrally placed in the cable
Compliant with ISO/IEC 11801, IEC 60794
Up to 288 fibers enhance single mode fibers in full compliance with G652D/G657A1/A2
Outer sheath of LSZH, black
Single gel-filled loose-tube to block the ingress of water
Fiber counts – color-coded according to TIA-598-D
Customizable fiber selection
Armored/non-armored variants

Part Number	Product Description
FFLS2SLXX	INDOOR/OUTDOOR LOW SMOKE ZERO HALOGEN (LSZH) LOOSE TUBE CABLES ARE PERFECTLY SUITED FOR RUGGED APPLICATIONS AND INSTALLATIONS REQUIRING INCREASED PERFORMANCE. LSZH-RATED I/O LOOSE UNI-TUBE CABLES ARE AVAILABLE FROM 04-24 COUNT WITH VARIABLE SUB-CABLE DIMENSIONS TO SUPPORT SPECIFIC TERMINATION AND ROUTING REQUIREMENTS. THE OFFERED CABLES ARE FULLY COMPLIANT WITH THE RELEVANT IEC SPECIFICATIONS. THE SINGLE LOOSE TUBE CABLES CONSIST OF 04 TO 24, 250µM OPTICAL FIBERS IN A SINGLE GEL FILLED LOOSE TUBE WITH E-GLASS NON-METALLIC STRENGTH MEMBERS AND BLACK LSZH, UV RESISTANT JACKET WITH RIPCORD.	View Product
FFLS2MLXX	INDOOR/OUTDOOR LOW SMOKE ZERO HALOGEN (LSZH) LOOSE TUBE CABLES ARE PERFECTLY SUITED FOR RUGGED APPLICATIONS AND INSTALLATIONS REQUIRING INCREASED PERFORMANCE. LSZH-RATED I/O LOOSE MULTI-TUBE CABLES ARE AVAILABLE FROM 48-288 COUNT WITH VARIABLE SUB-CABLE DIMENSIONS TO SUPPORT SPECIFIC TERMINATION AND ROUTING REQUIREMENTS. THE OFFERED CABLES ARE FULLY COMPLIANT WITH THE RELEVANT IEC SPECIFICATIONS. THE MULTI LOOSE TUBE CABLE CONSTRUCTION CONSISTS OF UP TO 288, 250µM OPTICAL FIBERS IN 12 FIBER GEL FILLED LOOSE TUBES WITH FILLERS WHERE APPROPRIATE, SZ STRANDED AROUND A FIBER REINFORCED PLASTIC (FRP) CENTRAL STRENGTH MEMBER WITH WATER SWELLABLE THREADS AND WATER SWELLABLE TAPE. HELICALLY APPLIED WATER BLOCKING E-GLASS NON-METALLIC STRENGTH MEMBERS WITH RIPCORD AND BLACK LOW SMOKE ZERO HALOGEN (LSZH) JACKET.	View Product
FFLS2SLXXG	INDOOR/OUTDOOR LOW SMOKE ZERO HALOGEN (LSZH) LOOSE TUBE CABLES ARE PERFECTLY SUITED FOR RUGGED APPLICATIONS AND INSTALLATIONS REQUIRING INCREASED PERFORMANCE. LSZH-RATED I/O LOOSE UNI-TUBE CABLES ARE AVAILABLE FROM 04-24 COUNT WITH VARIABLE SUB-CABLE DIMENSIONS TO SUPPORT SPECIFIC TERMINATION AND ROUTING REQUIREMENTS. THE OFFERED CABLES ARE FULLY COMPLIANT WITH THE RELEVANT IEC SPECIFICATIONS. THE SINGLE LOOSE TUBE CABLES CONSIST OF 04 TO 24, 250µM OPTICAL FIBERS IN A SINGLE GEL FILLED LOOSE TUBE WITH E-GLASS NON-METALLIC STRENGTH MEMBERS AND BLACK LSZH, UV RESISTANT JACKET WITH RIPCORD.	View Product
FFLS2MLXXG	INDOOR/OUTDOOR LOW SMOKE ZERO HALOGEN (LSZH) LOOSE TUBE CABLES ARE PERFECTLY SUITED FOR RUGGED APPLICATIONS AND INSTALLATIONS REQUIRING INCREASED PERFORMANCE. LSZH-RATED I/O LOOSE MULTI-TUBE CABLES ARE AVAILABLE FROM 48-144 COUNT WITH VARIABLE SUB-CABLE DIMENSIONS TO SUPPORT SPECIFIC TERMINATION AND ROUTING REQUIREMENTS. THE OFFERED CABLES ARE FULLY COMPLIANT WITH THE RELEVANT IEC SPECIFICATIONS. THE MULTI LOOSE TUBE CABLE CONSTRUCTION CONSISTS OF UP TO 144, 250µM OPTICAL FIBERS IN 12 FIBER GEL FILLED LOOSE TUBES WITH FILLERS WHERE APPROPRIATE, SZ STRANDED AROUND A FIBER REINFORCED PLASTIC (FRP) CENTRAL STRENGTH MEMBER WITH WATER SWELLABLE THREADS AND WATER SWELLABLE TAPE. HELICALLY APPLIED WATER BLOCKING E-GLASS NON-METALLIC STRENGTH MEMBERS WITH RIPCORD AND BLACK LOW SMOKE ZERO HALOGEN (LSZH) JACKET.	View Product
FFLS2SLXXA	INDOOR/OUTDOOR ARMORED CENTRAL LOOSE TUBE SINGLE JACKET FIBER OPTIC CABLES ARE TYPICALLY USED FOR BOTH INDOOR AND OUTDOOR APPLICATIONS. LSZH-RATED I/O LOOSE UNI-TUBE CABLES ARE AVAILABLE FROM 04-24 COUNT WITH VARIABLE SUB-CABLE DIMENSIONS TO SUPPORT SPECIFIC TERMINATION AND ROUTING REQUIREMENTS. INDOOR/OUTDOOR CABLE SUITABLE FOR INSTALLATION IN DUCTS, TUNNELS, DIRECT BURIAL, AND OTHER APPLICATIONS WHERE IMPACT PROTECTION AND CIRCUIT INTEGRITY ARE CRITICAL.	View Product
FFLS2MLXXA	INDOOR/OUTDOOR ARMORED CENTRAL LOOSE TUBE SINGLE JACKET FIBER OPTIC CABLES ARE TYPICALLY USED FOR BOTH INDOOR AND OUTDOOR APPLICATIONS. LSZH-RATED I/O LOOSE MULTI-TUBE CABLES ARE AVAILABLE FROM 48-288 COUNT WITH VARIABLE SUB-CABLE DIMENSIONS TO SUPPORT SPECIFIC TERMINATION AND ROUTING REQUIREMENTS. INDOOR/OUTDOOR CABLE SUITABLE FOR INSTALLATION IN DUCTS, TUNNELS, DIRECT BURIAL, AND OTHER APPLICATIONS WHERE IMPACT PROTECTION AND CIRCUIT INTEGRITY ARE CRITICAL.	View Product
