Cat6a Cables

Outdoor Cables

Category 6A Outdoor Cables are designed for outdoor applications and is suitable for outdoor duct installations. CAT 6A LAN Data Cable is an enhanced performance cable used for transmission of high-speed data, digital, analogue voice and video RGB signals on LANs. It supports Gigabit Ethernet (10G baseT) standard and operates at bandwidths up to 500 MHZ.

Features & Benefits

Supports Category 6A (Class EA) networks up to 500MHz
Supplied meter marked for easy installation.
Compliant with ANSI/TIA-568-D.2, ISO 11801
23AWG premium grade copper conductor.
Better shielding in external interference environment.
Jacket options: LSZH
Options for Plenum/Riser rated jackets.
ETL verified
Available in different colours, reel lengths and reeling techniques

Part Number	Product Description
FC6AUUEB-AT	CATEGORY 6A U/UTP OUTDOOR CABLES ARE MANUFACTURED AND TESTED TO THE TIA/EIA 568.2-D, EN50173‐1 AND ISO/ IEC 11801 CATEGORY 6A SPECIFICATIONS. EACH CABLE CONSISTS OF 8 COLOUR CODED 23AWG HIGH DENSITY POLYETHYLENE INSULATED CONDUCTORS. EACH CONDUCTOR IS TWISTED TOGETHER TO FORM 4 PAIRS WITH VARYING LENGTHS. SUPPORTS GIGABIT ETHERNET (10GBASET) STANDARD OPERATES AT BANDWIDTH OF 500MHZ.	View Product

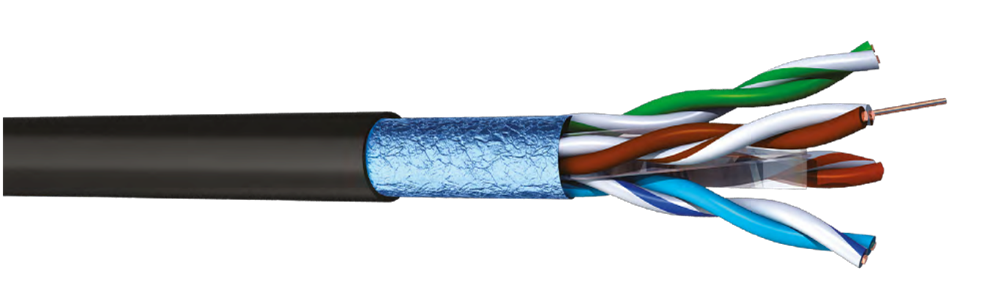

FC6AFUEB-AT	CATEGORY 6A SHIELDED TWISTED PAIR (F/UTP) CABLES ARE CONSTRUCTED WITH A 4 X 2 X 23 AWG COPPER WIRE STRUCTURE TO CLASS EA STANDARDS AND TO SUPPORT PROTOCOLS UP TO 500 MHZ. F/UTP CABLES ARE EXCEL IN ENVIRONMENTS PRONE TO HEAVY EXTERNAL INTERFERENCE LIKE EMI, ENSURING UNINTERRUPTED SIGNAL TRANSMISSION. EACH CABLE CONSISTS OF 8 COLOUR CODED 23AWG HIGH DENSITY POLYETHYLENE INSULATED CONDUCTORS TO USE IN UNDERGROUND AND A WIDE TEMPERATURE RANGE FOR EXTREME WEATHER ENVIRONMENTS.	View Product
FC6ASFEB-AT	CATEGORY 6A SHIELDED TWISTED PAIR (S/FTP) CABLES ARE CONSTRUCTED WITH A 4 X 2 X 23 AWG COPPER WIRE STRUCTURE TO CLASS EA STANDARDS AND TO SUPPORT PROTOCOLS UP TO 500 MHZ. EXCELLENT SHIELDING EFFECT DUE TO INDIVIDUALLY SCREENED PAIRS AND OVERALL COPPER BRAID. FABNET 6A / CLASS EA 4-PAIR S/FTP CABLE SUPPORTS CHANNEL PERFORMANCE EXCEEDS THE REQUIREMENTS OF ANSI/TIA, ISO/IEC 11801, IEC 61156-5, EN 50173-1 AND EN 50288-10-1	View Product
FC6ASFAB-AT	CATEGORY 6A SHIELDED TWISTED PAIR (S/FTP) CABLES ARE CONSTRUCTED WITH A 4 X 2 X 23 AWG COPPER WIRE STRUCTURE TO CLASS EA STANDARDS AND TO SUPPORT PROTOCOLS UP TO 500 MHZ. EXCELLENT SHIELDING EFFECT DUE TO INDIVIDUALLY SCREENED PAIRS AND OVERALL COPPER BRAID. FABNET 6A / CLASS EA 4-PAIR S/FTP ARMORED CABLE CONSISTS OF PE INSULATED 23AWG SOLID BARE ANNEALED COPPER CONDUCTORS, TWISTED 4 PAIR STRANDED, STEEL WIRE ARMOR, PVC INNER SHEATH AND PE (UV STABILIZED) OUTER SHEATH.	View Product
