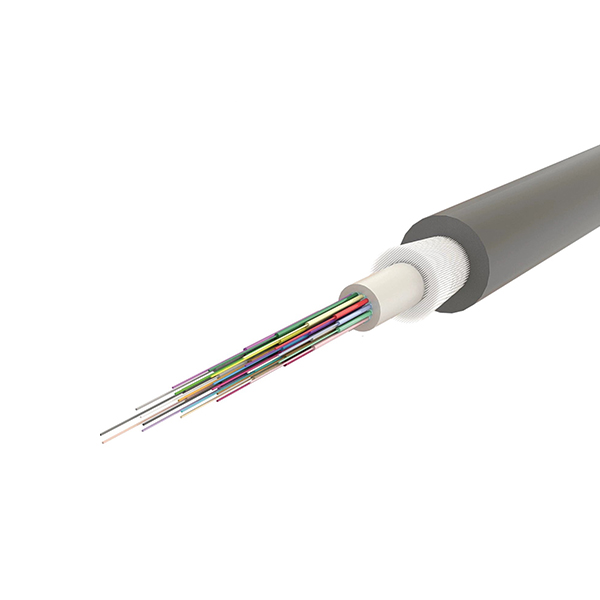

Indoor/Outdoor Low Smoke Zero Halogen (LSZH) Loose tube Cables are perfectly suited for rugged applications and installations requiring increased performance. LSZH-rated I/O Loose Uni-Tube cables are available from 04-24 count with variable sub-cable dimensions to support specific termination and routing requirements. The offered cables are fully compliant with the relevant IEC specifications. The single loose tube cables consist of 04 to 24, 250µm optical fibers in a single gel filled loose tube with e-glass non-metallic strength members and black LSZH, UV resistant jacket with ripcord.
| Fiber Type | Single mode 9/125 G652.D |
|---|---|
| Number of cores | 04 to 24 |
| Type of tube | Loose |
| Number of Tubes | Single |
| Category | OS2 |
| Strength Member | E-glass Yarns |
| Color of Fibers in Per Tube |
|
| Tube Material | PBT |
| Tube Filling Compound | Thixotropic Jelly |
| Outer Jacket Colors | SM-Black |
| Strength Element | Swellable Glass Yarn |
| Outer sheath material | LSZH |
| Outer diameter approx. | 7 mm |
