Application

Applications

• Supports category 6a (Class EA) networks running up to 500MHz applications
• 100BASE-T through 10GBASE-T Ethernet
• Power over Ethernet (PoE) - IEEE 802.3bt Type 1 to 4
• Horizontal and backbone in structured cabling installations

Specifications & Features

• The cable shall meet ANSI/TIA-568.2-D and ISO 11801 Category 6A standards
• Cable jacket LSZH
• 23AWG premium-grade copper conductor

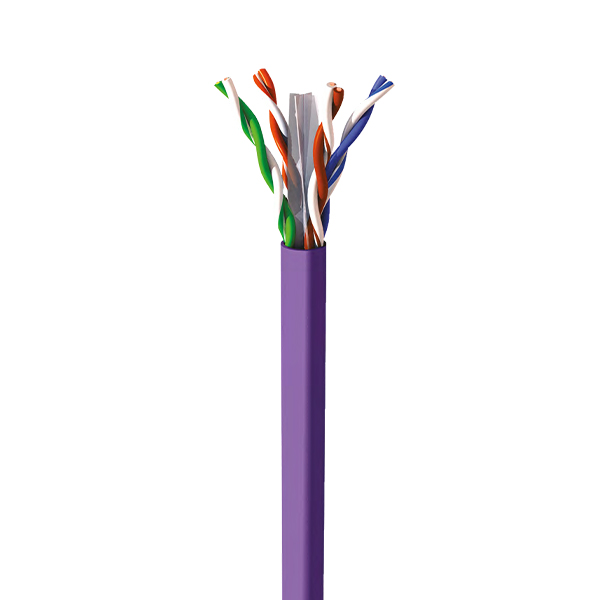

• U/UTP cable structure with cross separator inside for better cable performance

Specifications Features

{ "Conductor": "Solid Bare Copper", "Conductor Size": "23 AWG", "Insulation": "Polyethylene", "Number of Insulated Conductors": "8, twisted in 4 pairs", "Color Code of Pairs": [ "Blue x White/Blue", "Orange x White/Orange", "Green x White/Green", "Brown x White/Brown" ], "Outer Jacket": "LSZH", "Jacket Color": "White. Other colors available upon request", "Overall Length (m)": "305 / 500mtr", "Short Term Bend Radius": "4xOD mm", "Long Term Bend Radius": "8xOD mm", "Operating Temperature": "-20 to +75C", "Installation Temperature": "0 to +50C", "Storage Temperature": "-20 to +80C", "Pulling Tension, maximum": "100 N", "Cable Outside Diameter": "7.1 mm ± 0.3 mm", "Packaging Type": "Reel" }
