FPP12PE

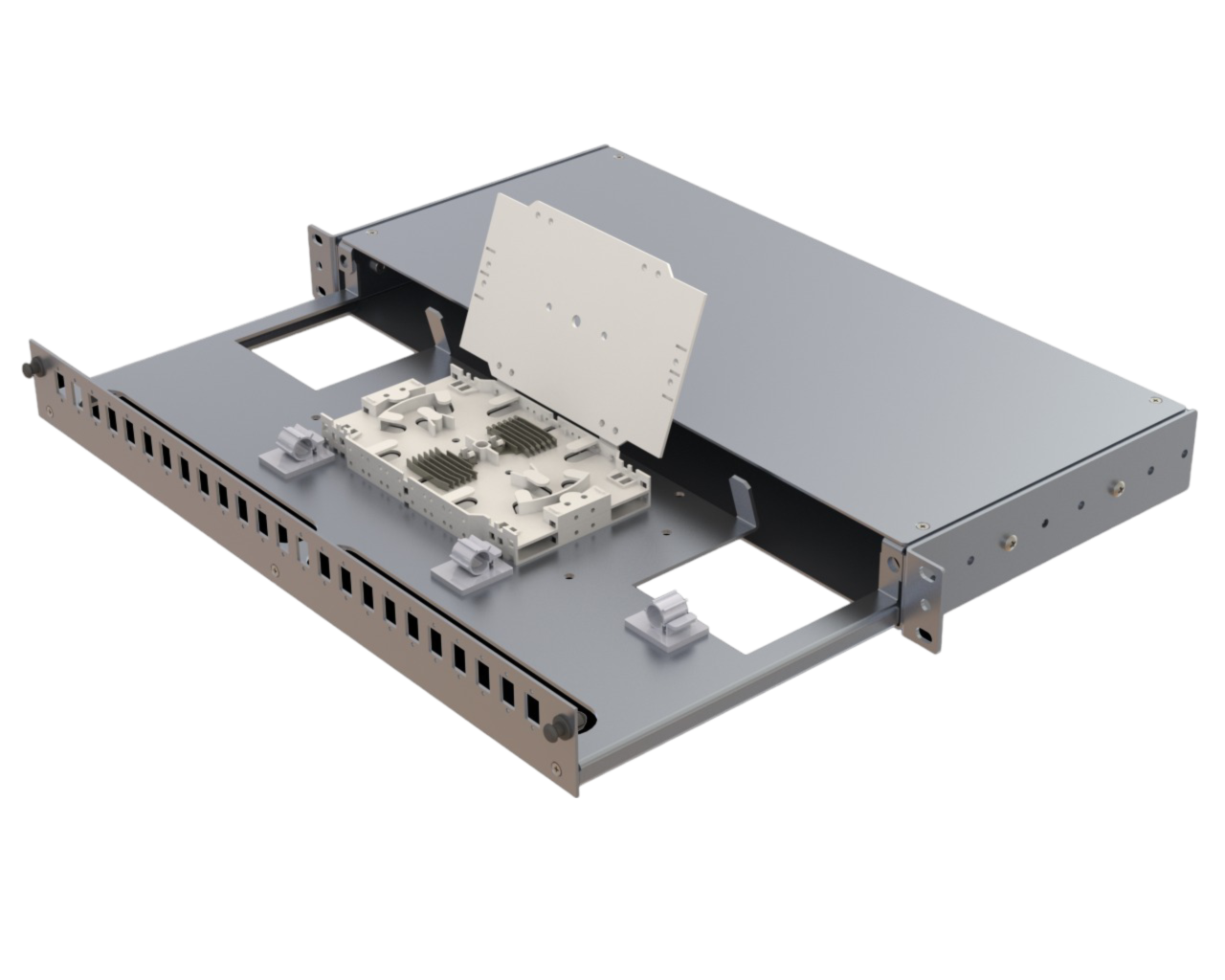

FABNET 1U 19" 12 ports SC Simplex or LC Duplex Empty Sliding Rail Rack mount Fiber patch panel

FPP12PE
FPP12PE

The fiber panels are designed to mount adapter plate assemblies and feature a special sliding design for easy access during installation or rework, minimizing disruption to previously terminated fiber cables. They offer multiple cable entry points, allowing for customized solutions based on customer requirements.

Application
Application
  • FFTH, Telecoms CO, Datacenters, CATV LAN & WAN
  • LAN, PON & Optical CATV, Local ring net.
  • Optical fiber communication system.
Specifications & Features
  • Standard 19-inch Rack Mountable
  • Innovative and robust design
  • Unique slide design, structural stability, easy to use and operate, slides smoothly
  • 4 Nos of 20mm diameter at the rear for Cable entries
  • Based on Adapter plates installed, maximum 24 cores can be accommodated
  • Accepts loose tube & distribution cable
  • Available in Single Adapter plate, 2 Cutout Adapter Plate and 4 Cutout Adapter Plate
  • Loaded (Fully loaded with Adapters, Splice Tray, Cable reel and Pigtail.) and Unloaded Options

Specifications Features
{ "Range of Mode": "Single Mode, Multi-Mode", "Connector type": "SC/APC, LC/APC, SC/UPC, LC/UPC", "Material": "Cold Rolled Sheet", "Fiber Capacity": "24 / 48 Core", "Patch Panel Type": "Unloaded", "Rack Space": "01U", "Operating Temperature": "-25° to 70°", "Storage Temperature": "-25° to 70°" }
