FWPxxPy

FABNET 12/24/48 PORT WALL MOUNTED ODF UNLOADED WITH SPLICE CASSETTE (24/48/96 Core SC/LC/FC), OS2/OM3/OM4

FWPxxPy

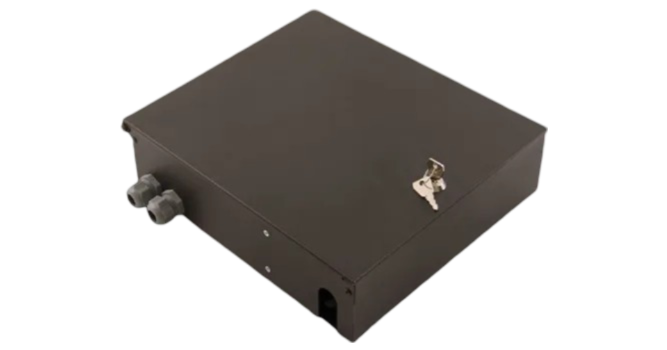

The wall mount fiber optic box is designed for direct termination or routing of fiber cables. The rear section accommodates cable entry and provides protection to prevent cable removal. The box features two separate compartments: one for fusion splice trays and another for routing optical connecting modules to the equipment.

Application
Application
  • FFTH, Telecoms CO, CATV LAN & WAN
  • LAN, PON & Optical CATV, Local ring net.
  • Optical fiber communication system.
Specifications & Features
  • The enclosure is highly intensified & insulated material, thus having excellent mechanical performance and it is solid and durable.
  • Adopts the imported lock.
  • Accepts SC/ST/FC/LC adapters or Direct termination.
  • 48/96 Core Options.

Specifications Features
{ "Range of Mode": "Single Mode, Multi-Mode", "Connector type": "SC/APC, LC/APC, SC/UPC, LC/UPC", "Material": "Cold Rolled Sheet", "Fiber Capacity": "24/48/96 Core", "Patch Panel Type": "Unloaded", "Installation": "Wall", "Operating Temperature": "-25° to 70°", "Storage Temperature": "-25° to 70°" }
