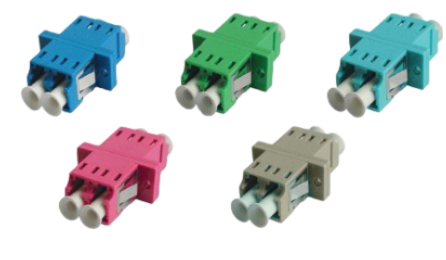

FABNET LC/SC OS2 Singlemode adapter, Duplex

FADS2UxC

Fiber Optic Adapters are designed to quickly connect two fiber optic patch cables together within a fiber optic networking system. These provide a reliable connection between connectors of the same type or hybrid, without unnecessary splicing or modifications. Solutions for coupling identical connectors are available for LC, LC/APC, SC, SC/APC, FC, FC/APC, ST, MPO, or MTP connectors. Specialized solutions for coupling an SC to LC or SC to ST terminations are also available, for another reliable connection without additional tooling.

Application

Patch panel and wall box connection interface
Fiber optic CATV, local area networks (LAN), test equipment, commercial, housing, security, FTTH, FTTP, FTTA, high EMI, and commercial applications.
Optical fiber communication system.

Specifications & Features

One-piece body prevents breaking.
Optimize side loading performance.
500 times use durability.
Low insertion and return loss and back reflection.
Available in Plastic and metal housing.
Precision zirconia ceramic split sleeve.
Complied TIA-568.3-D, IEC61754-4, ROHS.

Specifications Features

{ "Range of Mode": "Single Mode, Multi-Mode", "Connector type": "LC, LC/APC, SC, SC/APC, FC, FC/APC, ST, MPO, or MTP", "Polish or Ferrule Interface Type": "APC/UPC", "Adapter type": "Simplex, Duplex", "Durability": "500 Mating", "Insertion Loss (Typical)": "0.1 dB", "Insertion Loss (Maximum)": "0.2 dB", "Operating Temperature": "-20 °C to +60 °C" }
