FC6AFFLW-AT

FABNET Data Cable, Cat6A, F/FTP, 23AWG, LSZH

FC6AFFLW-AT
FC6AFFLW-AT

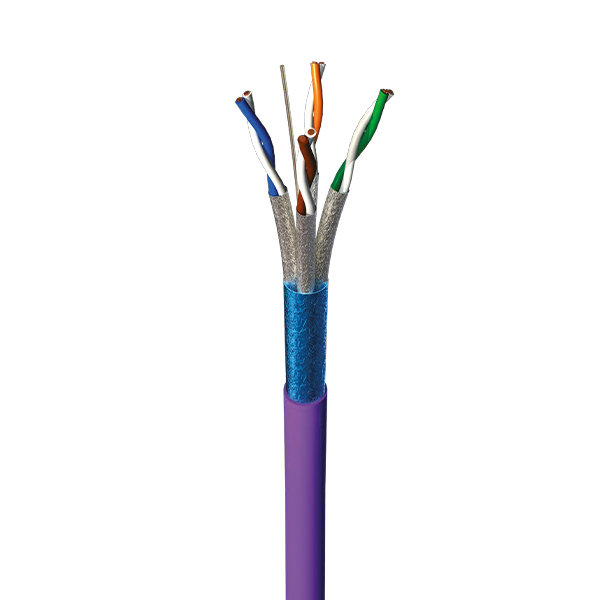

Category 6A shielded twisted pair (F/FTP) cables are constructed with a 4 x 2 x 23 AWG copper wire structure to Class EA standards and to support protocols up to 500 MHz. F/FTP cables are exceled in environments prone to heavy external interference like EMI, ensuring uninterrupted signal transmission. This cable uses a 5-foil screened design consisting of 4 individual foils wrapped in pairs plus an overall foil shield. Supports channel performance exceeding ANSI/TIA and ISO/IEC category6A requirements.

Application
Applications
  • Supports category 6A (Class EA) networks running up to 500MHz applications
  • 100BASE-T through 10GBASE-T Ethernet
  • Power over Ethernet (PoE) - IEEE 802.3bt Type 1 to 4
  • Horizontal and backbone in structured cabling installations
Specifications & Features
  • The cable shall meet ANSI/TIA-568.2-D and ISO 11801 Category 6A standards
  • Cable jacket LSZH
  • 23AWG premium-grade copper conductor

Specifications Features
{ "Conductor": "Solid Bare Copper", "Conductor Size": "23 AWG", "Insulation": "Polyethylene", "Number of Insulated Conductors": "8, twisted in 4 pairs", "Color Code of Pairs": [ "Blue x White/Blue", "Orange x White/Orange", "Green x White/Green", "Brown x White/Brown" ], "Overall Shield": "Aluminum Foil Tape", "Individual Pair Shield": "Aluminum Foil Tape", "Outer Jacket": "LSZH", "Jacket Color": "White. Other colors available upon request", "Overall Length (m)": "305 / 500mtr", "Short Term Bend Radius": "4xOD mm", "Long Term Bend Radius": "8xOD mm", "Operating Temperature": "-20 to +75C", "Installation Temperature": "0 to +50C", "Storage Temperature": "-20 to +80C", "Pulling Tension, maximum": "100 N", "Cable Outside Diameter": "7.5 mm ± 0.3 mm", "Packaging Type": "Reel" }
