FABNET In line Indoor/Outdoor enclosure 24 to 288 (***) Fibers.

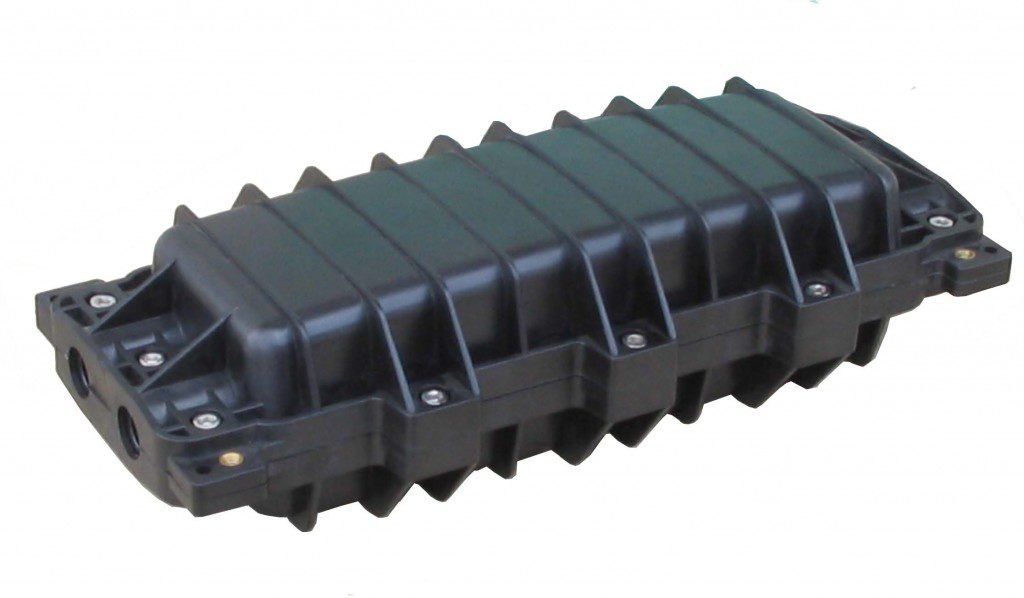

FIExxCOU

The outdoor fiber optic splice enclosure is designed for splicing and protecting optical fiber cables in harsh outdoor environments. It accommodates a wide range of fiber counts, from 24 to 288 fibers, and offers robust IP66 to IP68 protection to ensure durability and reliability in various weather conditions. Heat Shrink Sealing Type Closure is specially designed to provide reliable and long-lasting protection for optical fibers and splices, combined with maximum ease of installation and maintenance. The closure is made of glass-filled polypropylene, which can ensure long time service. Heat shrink seal for cable ports, excellent sealing performance.

Application

FTTH applications - Indoor or outdoor.
Industrial Application.
Direct buried.
Outdoor WIFI or CCTV applications.
Wall, Pole, Aerial or Manhole mount installation.

Specifications & Features

Suitable for direct buried, aerial, pole, pipeline, manhole, etc.
A heat shrink seal is adopted for cable ports, with a protection grade of IP68.
Single fiber max capacity is up to 288F, also supports max 432F ribbon fiber.
Easy installation with no special tool required.
ROHS.

Specifications Features

{ "Style": "In-line/ Horizontal", "Dimensions(mm)": "Starting from 420 mm", "Weight (kg)": "2.2 – 3.5", "Material": "The compound of Polypropylene with glass fibers", "Sealing Type": "Mechanical Seal", "Protection Grade": "IP68", "Closure Max Capacity": "288F", "Splice Tray Capacity": "24/48F", "Installation": "Aerial, wall, pole, manhole, pedestal etc" }
