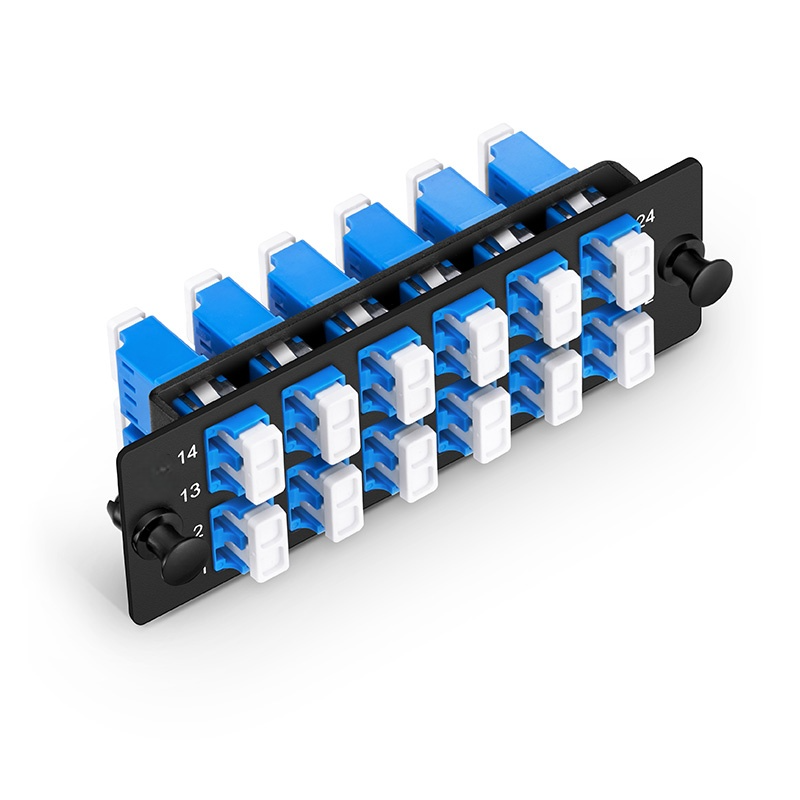

FABNET Fiber adapter panel, 6/8/12 Duplex, OS2/OM4/OM5, LC or SC (APC/UPC).

FFADxxc1yy

High-Density Fiber Adapter Panel is designed specifically for use with 19” rack mount fiber enclosures and wall-mount fiber enclosures. It is an LC/SC fiber adapter panel with pre-loaded 6/8/12 duplex connectors that feature ceramic sleeves for precision, alignment, and longevity. Each LC/SC fiber adapter comes with dust caps to protect prevent dust and debris from entering. This fiber adapter panel is designed with snap-on fasteners for easy installation and removal, just snap the panel into the enclosure with no tools required. It’s perfect for fiber infrastructure that requires easier cable management.

Application

Used with rack mount, both fixed and sliding fiber optic patch panel and wall mount distribution box.
High-density fiber optic network application.
Installation and management of fiber optic patch cords and pigtails.

Specifications & Features

Toolless installation and removal of adapter plates.
LC/SC fiber adapter panel with pre-loaded 6/8/12 simplex or duplex connectors.
Compact high-density design.
Dust caps protect unused connectors from debris and damage.
Meet ANSI/TIA/EIA 568-C standards.
RoHS compliant.

Specifications Features

{ "No of Ports": "6/8/12", "Connector": "LC/APC, SC/APC, LC, SC", "Adaptor Type": "Duplex", "Fiber Mode": "SM or MM", "Material of Sleeve": "Zirconia Ceramic", "Material of Plate": "Steel, Powder-coated Black", "Durability": "≤500 mating cycles", "Insertion Loss (Maximum)": "0.2dB", "Operating Temperature": "-20~+60 °C", "Installation": "19” Fiber Patch Panel or Wall Mount Panels" }
