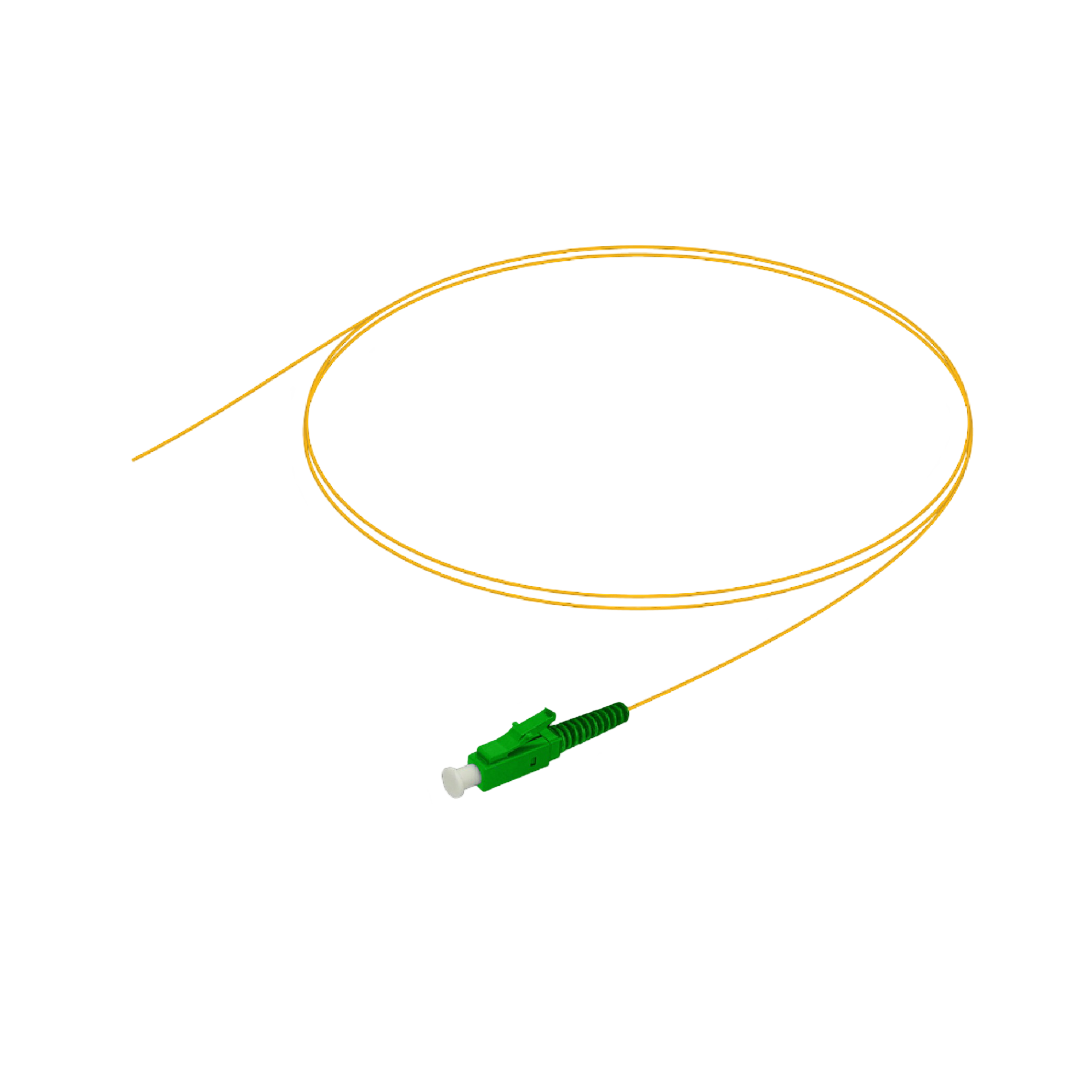

LC or SC/APC OS2 Singlemode pigtail, 900um buffered fiber,1 Mtr

FPGS2AxC02

OS2 Fiber optic pigtail suitable for common splicing applications supplied in a 1-meter length 900μm tight buffered fiber cable with a yellow jacket. Pigtail meets the requirement of ANSI/TIA 568.D-2 compliance. Pigtails are 900 micro tight buffered and one end is factory terminated and another end as not connectorized. Single Mode pigtails are ITUG-T.657A2 graded fiber types and are available with APC and UPC connectors. In multimode has UPC SC or LC type connectorized pigtails. Standard lengths are 1, 1.5 and 2 Meters.

Application

Telecom, FTTH, Optical CATV and LAN applications.
On-site termination.
Patch Panels, wall boxes, ODFs and splice cassettes, dome and inline splicing enclosure.
Optical fiber communication system.

Specifications & Features

Low insertion loss.
High return loss.
Made of high-quality ABS, anti-collision, Flame retardant, and Resistance to impact.
Complied with ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-3 (FOCIS-3), TIA-604-10 (FOCIS-10).
ITU-T G652.D OS2.
ITU-T G657 A2.

Specifications Features

{ "range_of_mode": "Single Mode, Multi-Mode", "connector_type": "SC/APC, LC/APC (SM), SC/UPC & LC/UPC (SM & MM)", "polish_or_ferrule_interface_type": "APC / UPC", "cable_diameter": "0.9mm", "outer_jacket": "PVC", "buffer_colour": "Yellow / Aqua", "operating_temperature": "-25° to 70°", "storage_temperature": "-25° to 70°" }
