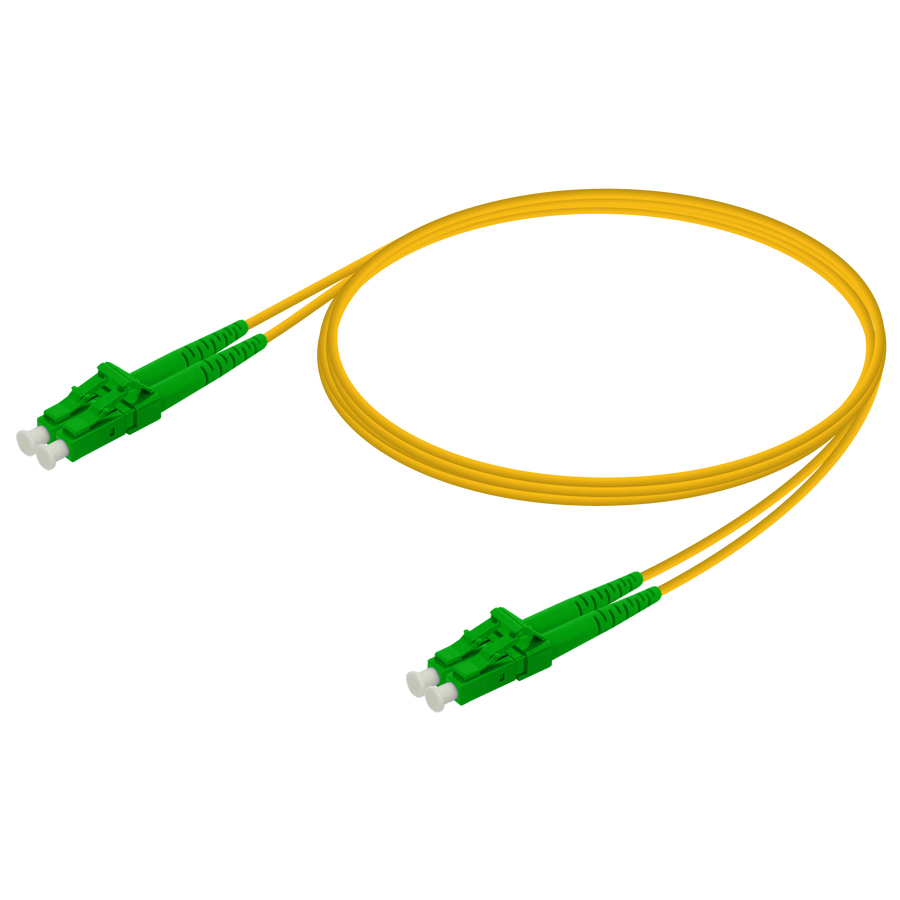

LC/SC/APC to (LC/APC, LC/UPC, SC/APC, SC/UPC) Single Mode Duplex Patch Chord, 3mm Jacket, ** Mtr

FPCS2Ac1c2xx

Patch cords are available in Single Mode OS2 ITUG657 A2/ 652.D and Multi-Mode OM3/OM4 categories. All Patch cords are with tight buffered construction, and both ends and are pre-terminated with either SC or LC connectors come in simplex or duplex cords. Patch cord cable jacket constructed with LSZH-rated material. Low insertion loss Angled Physical Contact (APC), ultra–Physical Contact (UPC) straight cord or combined hybrid type cords with different lengths are available. The patch cords shall be compliant with ANSI/TIA-568.3-D standard.

Application

FFTH, Telecoms CO, Datacenters, CATV LAN & WAN
LAN, PON & Optical CATV, Local ring net.
Patch Panels, wall boxes, ODFs
Optical fiber communication system.

Specifications & Features

Low insertion loss.
High return loss.
Excellent Repeatability, exchange-ability, wearability and stability.
Many fiber options: OS2, OM3, OM4 and OM5.
All cords are pre-labeled and individually bagged.
Complied with LSZH IEC 60332-1-2, IEC 60332-3-24, IEC 60754-1
ROHS

Specifications Features

{ "Range of Mode": "Single Mode, Multi-Mode", "Connector type": [ "SC/APC-SC/APC", "LC/APC-LC/APC", "SC/APC-LC/APC (SM)", "SC/UPC-SC/UPC", "LC/UPC-LC/UPC", "SC/UPC-LC/UPC (SM&MM)" ], "Cable Type": "Simplex / Duplex", "Strength Member": "Aramid Yarn", "Polish or Ferrule Interface Type": "APC / UPC", "Cable Diameter": [ "3.0mm (APC)", "2.0mm", "3.0mm (UPC)" ], "Outer Jacket": "LSZH", "Jacket Colour": [ "Yellow (SM)", "Aqua (MM)" ], "Operating Temperature": "-25° to 70°", "Storage Temperature": "-25° to 70°" }
