FC7SFLW-AF

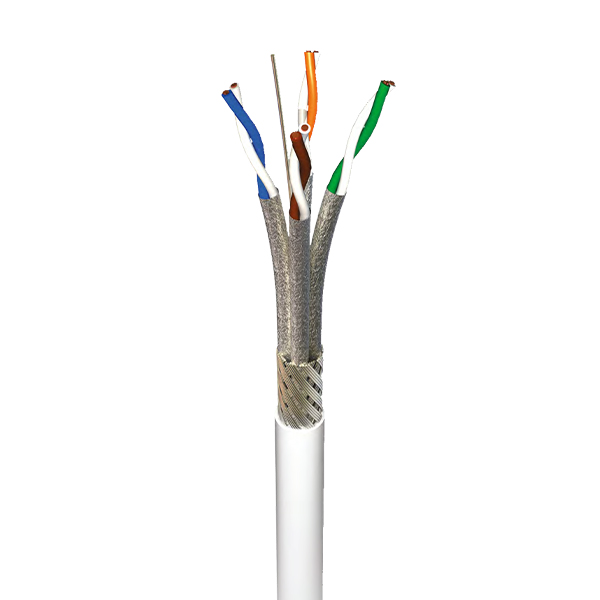

FABNET Data Cable, Cat7, S/FTP, 23AWG, LSZH

FC7SFLW-AF
FC7SFLW-AF

CAT7 S/FTP LSZH cable is designed for applications with high levels of Electromagnetic Interference. It consists of 4 pairs of individual shielding for each pair and an additional common shield made of tinned copper braid, making it ideal for shielded systems for external noise reduction and reduced EMI. Cat7 cable provides transmission performance in the 1-600MHz range as per IEC 61156-5 and is tested up to 1.2GHz for reference.

Application
Applications
  • Supports Category 7 networks up to 600MHz
  • 100BASE-T through 10GBASE-T Ethernet
  • Power over Ethernet (PoE) - IEEE 802.3bt Type 1 to 4
  • Horizontal and backbone in structured cabling installations, high bandwidth requirement
Specifications & Features
  • The cable complies with ANSI/TIA-568-D.2, ISO 11801
  • Cable jacket LSZH
  • 23AWG premium-grade copper conductor
  • Fully shielded construction ensures virtually zero cross talk

Specifications Features
{ "Conductor": "Solid Bare Copper", "Conductor Size": "23 AWG", "Insulation": "Polyethylene", "Number of Insulated Conductors": "8, twisted in 4 pairs", "Color Code of Pairs": [ "Blue x White/Blue", "Orange x White/Orange", "Green x White/Green", "Brown x White/Brown" ], "Overall Shield": "Tinned Copper Braid", "Individual Pair Shield": "Aluminum Foil Tape", "Outer Jacket": "LSZH", "Jacket Color": "White. Other colors available upon request", "Overall Length (m)": "500mtr", "Short Term Bend Radius": "4xOD mm", "Long Term Bend Radius": "8xOD mm", "Operating Temperature": "-20 to +75C", "Installation Temperature": "0 to +50C", "Storage Temperature": "-20 to +80C", "Pulling Tension, maximum": "100 N", "Cable Outside Diameter": "7.5 mm ± 0.3 mm", "Packaging Type": "Reel" }
