FC64UULW-AT

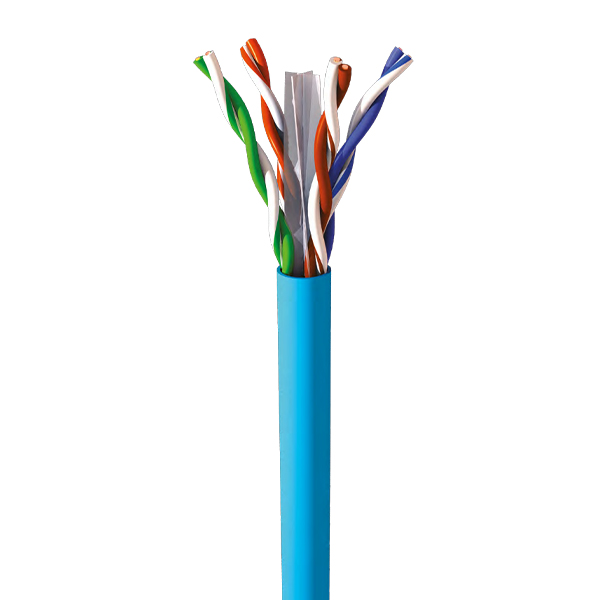

FABNET Data Cable, Cat6, U/UTP, 24AWG, LSZH

FC64UULW-AT
FC64UULW-AT

Category 6 U/UTP cables are specifically designed to deliver robust standards-based performance ensuring optimum bandwidth for today’s high speed network applications. Category 6 cable shall meet ANSI/TIA-568-2. D Category 6 component standard. The conductors shall be 24 AWG construction with Polyethylene insulation. The copper conductors shall be twisted in pairs and covered by LSZH jacket.CAT 6 compliance ensures the cable support. 1000BASE-T Gigabit Ethernet.

Application
Applications
  • Supports category 6 (Class E) networks running up to 250MHz applications
  • 10BASE-T, 100BASE-TX Fast Ethernet, 1000BASE-T (IEEE802.3)
  • Horizontal and backbone in structured cabling installations
Specifications & Features
  • The cable shall meet ANSI/TIA-568-D.2 Cat 6 and ISO/IEC 11801-2ND EDITION Class E performance requirements
  • Cable jacket in LSZH
  • 24AWG premium-grade copper conductor
  • U/UTP cable structure with cross separator inside for better cable performance

Specifications Features
{ "Conductor": "Solid Bare Copper", "Conductor Size": "24 AWG", "Insulation": "Polyethylene", "Number of Insulated Conductors": "8, twisted in 4 pairs", "Color Code of Pairs": [ "Blue x White/Blue", "Orange x White/Orange", "Green x White/Green", "Brown x White/Brown" ], "Outer Jacket": "LSZH", "Jacket Color": "White. Other colors available upon request", "Overall Length (m)": "305 / 500mtr", "Short Term Bend Radius": "4xOD mm", "Long Term Bend Radius": "8xOD mm", "Operating Temperature": "-20 to +75C", "Installation Temperature": "0 to +50C", "Storage Temperature": "-20 to +80C", "Pulling Tension, maximum": "100 N", "Cable Outside Diameter": "5.6 mm ± 0.3 mm", "Packaging Type": "Reel" }
