Application

Applications

• Operates at wavelengths of 850 nm and 1300 nm.
• Cables are specifically designed for outdoor duct applications, mainly used in intra-building.
• Suitable for environments where rodent resistance is required.
• Supporting applications: 10 Gigabit Ethernet (10GBase-SR) and beyond.

Specifications & Features

• Compliant with ANSI/TIA-568.3-D, ISO/IEC 11801
• Jacket options: PE, Black

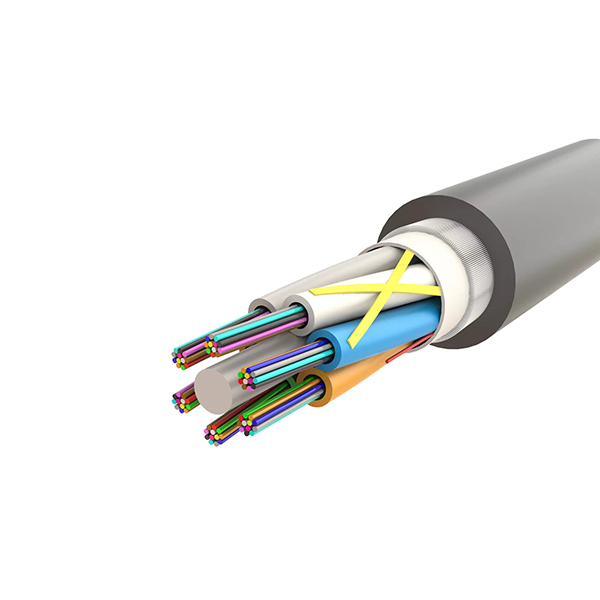

• Compact 250µm loose tube construction.
• High Modulus, Aramid yarn as a peripheral strength member.
• Water resistant & UV resistant
• Materials compliant to RoHS, REACH.

Specifications Features

{ "Fiber Type": "Multimode G651", "Number of cores": "48 to 288", "Type of tube": "Loose", "Number of Tubes": "Multi", "Category": "OM3", "Strength Member": "E-glass Yarns", "Color of Fibers in Per Tube": [ "Blue", "Orange", "Green", "Brown", "Gray", "White", "Red", "Black", "Yellow", "Violet", "Pink", "Aqua", "Blue with black tracer", "Orange with black tracer", "Green with black tracer", "Brown with black tracer", "Gray with black tracer", "White with black tracer", "Red with black tracer", "Natural", "Yellow with black tracer", "Violet with black tracer", "Rose with black tracer", "Aqua with black tracer" ], "Tube Material": "PBT", "Tube Filling Compound": "Thixotropic Jelly", "Outer Jacket Colors": "MM-Black", "Strength Element": "Swellable Glass Yarn", "Outer sheath material": "PE", "Outer diameter approx.": "12.5 to 26.5 mm" }
