FCP6SLMxy

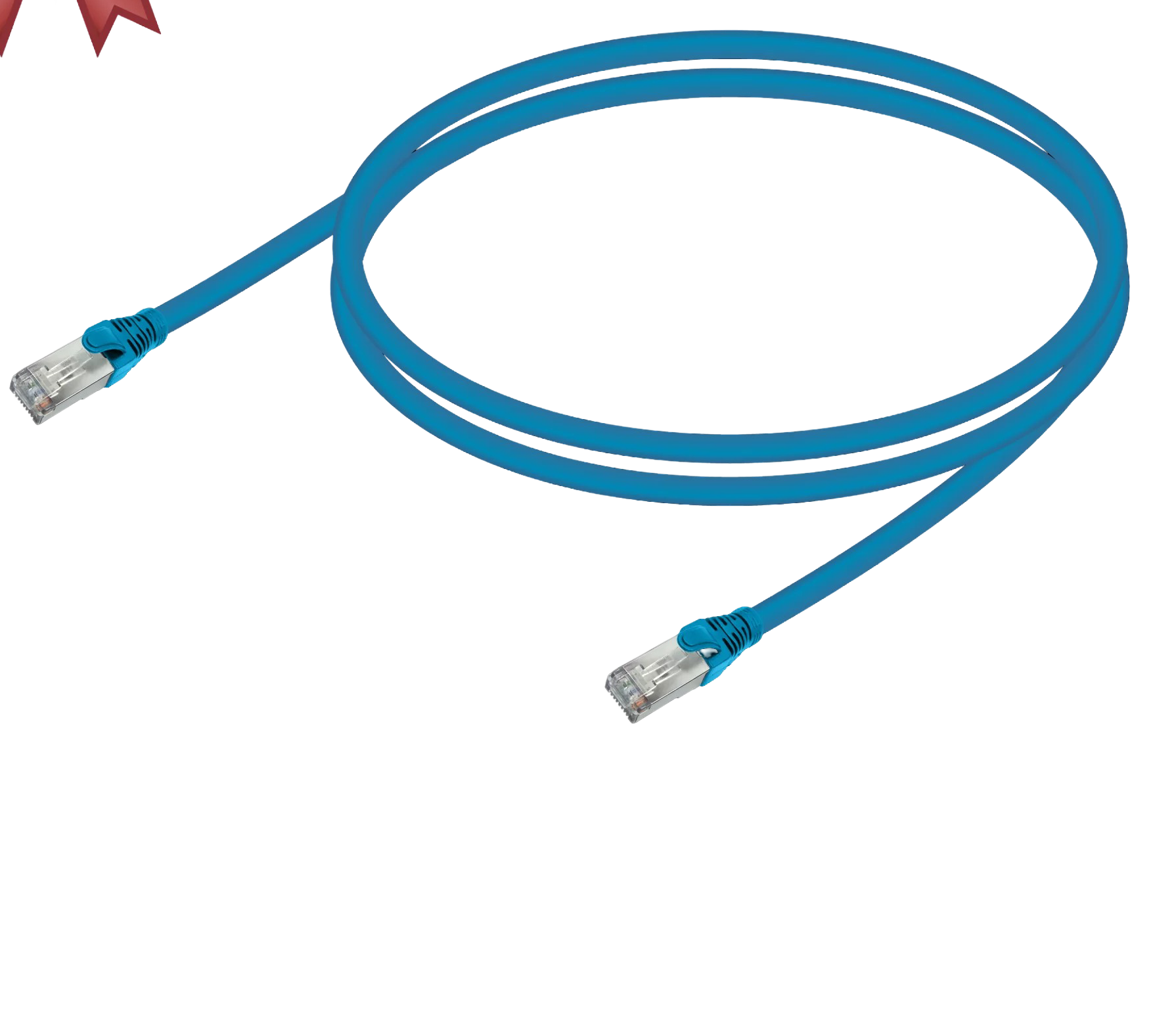

FABNET Copper Patch Lead, Cat6, Shielded, 24AWG LSZH, ** Mtr

FCP6SLMxy
FCP6SLMxy

CAT6 Patch cords are manufactured using high quality S/FTP 4 Pair Stranded cable and features cable strain relief boot with plug latch protection cap for anti-snag. They are designed to meet or exceed Cat6 specifications. These high-performance patch cords are available in various colors and lengths.

Application
Applications
  • Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T Standards.
Specifications & Features
  • Complies to ANSI/TIA 568.2-D, ISO/IEC 11801 & IEC 61156-6 Standard.
  • S/FTP stranded 24 AWG copper cable suitable for high density installations and superior panel cable management.
  • High Grade 50μ Gold Plated RJ45 connectors.
  • Injection Molded boot/Strain Relief Boot for improved performance.
  • Soft Latch-cover design for easy depression.
  • Supports 01Gigabit Ethernet, LSZH Jacket.
  • Color options: Blue, Green, Red, Yellow, Grey, White, also customized.

Specifications Features
{ "Conductor": "Stranded Bare Copper", "Conductor Size": "24 AWG", "Insulation": "Polyethylene", "Pulling Force": "30 N Max", "Plug Insertion Life, Minimum": "750 insertion cycles", "Outer Jacket": "LSZH", "Jacket Color": "Blue, Green, Red, Yellow, Grey, White, Customized", "Operating Temperature": "-20 to +60C", "Flammability Rating": "IEC 60332-1", "Pulling Tension, Maximum": "100 N", "Outside Diameter": "6.1 mm ± 0.3 mm" }
