FCP6AULMxy

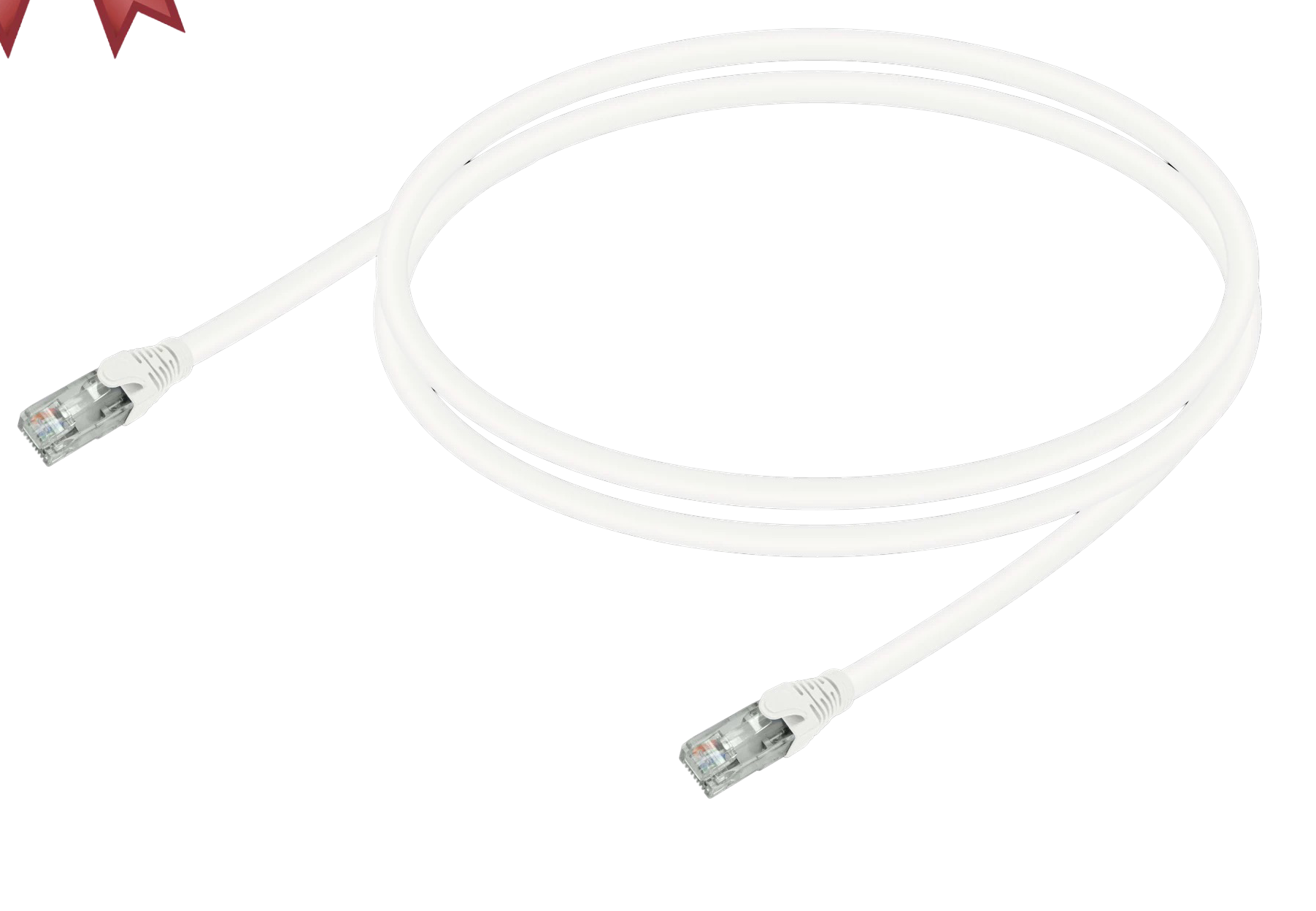

FABNET Copper Patch Lead, Cat6A, Unshielded, 24AWG LSZH, ** Mtr

FCP6AULMxy
FCP6AULMxy

CAT6A Patch cords are manufactured using high quality un-shielded 4 Pair Stranded cable and features cable strain relief boot with plug latch protection cap for anti-snag. They are designed to meet or exceed Cat6A specifications. These high-performance patch cords are available in various colors and lengths.

Applications
  • Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 10GBASE-T (10Gigabit Ethernet over limited distances as specified in the industry. 10GBASE-T standards).
Specifications & Features
  • Complies to ANSI/TIA 568.2-D, ISO/IEC 11801 & IEC 61156-6 Standard.
  • Quality 24 AWG U/UTP Stranded flexible cable.
  • High Grade 50μ Gold Plated RJ45 connectors.
  • Injection Molded boot/Strain Relief Boot for improved performance.
  • Soft Latch-cover design for easy depression.
  • Supports 10 Gigabit Ethernet, LSZH Jacket.
  • Color options: Blue, Green, Red, Yellow, Grey, White, also customized.

Conductor Stranded Bare Copper
Conductor Size 24 AWG
Insulation Polyethylene
Pulling Force 30 N Max
Plug Insertion Life, Minimum 750 insertion cycles
Outer Jacket LSZH
Jacket Color Blue, Green, Red, Yellow, Grey, White, Customized
Operating Temperature -20 to +60C
Flammability Rating IEC 60332-1
Pulling Tension, Maximum 100 N
Outside Diameter 6.2 mm ± 0.3 mm
