FCP6AULUMxy

FABNET Copper Ultra Slim Patch Lead, Cat6A, Unshielded, 28AWG LSZH, ** Mtr

FCP6AULUMxy
FCP6AULUMxy

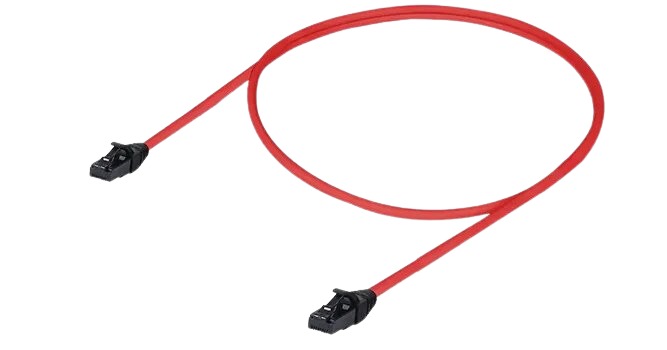

Cat6A UTP Ultra Slim Patch Cord is a 3.6±0.3mm diameter 4 pair cable terminated with 50- micron gold plated modular plugs. Ultra Slim cords are constructed of 28 AWG unshielded, twisted pair, solid, LSZH cable with high-performance modular plugs. Its compact 28 AWG design simplifies installation and management. These high-performance patch cords are available in various colors and lengths.

Application
Applications
  • Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 10GBASE-T (10Gigabit Ethernet over limited distances as specified in the industry. 10GBASE-T standards).
  • 10GBASE-T Ethernet / Data center I/O.
Specifications & Features
  • Complies to ANSI/TIA 568.2-D, ISO/IEC 11801 & IEC 61156-6 Standard.
  • Quality 28 AWG copper cable suitable for high density installations and superior panel cable management.
  • High Grade 50μ Gold Plated RJ45 connectors.
  • Injection Molded boot/Strain Relief Boot for improved performance.
  • Soft Latch-cover design for easy depression.
  • Supports 10 Gigabit Ethernet, LSZH Jacket.
  • Color options: Blue, Green, Red, Yellow, Grey, White, also customized.
  • ROHS Compliant.

Specifications Features
{ "Conductor": "Stranded Bare Copper", "Conductor Size": "28 AWG", "Insulation": "Polyethylene", "Pulling Force": "30 N Max", "Plug Insertion Life, Minimum": "750 insertion cycles", "Outer Jacket": "LSZH", "Jacket Color": "Blue, Green, Red, Yellow, Grey, White, Customized", "Operating Temperature": "-20 to +60C", "Flammability Rating": "IEC 60332-1", "Pulling Tension, Maximum": "100 N", "Outside Diameter": "3.6 mm ± 0.3 mm" }
