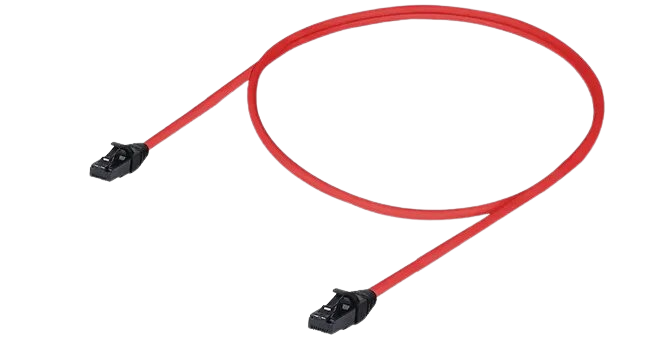

FABNET Copper Ultra Slim Patch Lead, Cat6A, Shielded, 28AWG LSZH, ** Mtr

FCP6ASLUMxy

Cat6A class EA Shielded Ultra Slim Patch Cord is a 5.3±0.4mm diameter pair cable terminated with 50-micron gold plated modular plugs. Ultra Slim cords are constructed of 28 AWG shielded, twisted pair, solid, LSZH cable with high-performance modular plugs. Its compact 28 AWG design simplifies installation and management. These high-performance patch cords are available in various colors and lengths.

Applications

Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 10GBASE-T (10Gigabit Ethernet over limited distances as specified in the industry. 10GBASE-T standards).
10GBASE-T Ethernet / Data center I/O.

Specifications & Features

Complies to ANSI/TIA 568.2-D, ISO/IEC 11801 & IEC 61156-6 Standard.
Exceeds all ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA electrical performance requirements for frequencies up to 500 MHz (Cat6A).
28 AWG copper cable suitable for high density installations and superior panel cable management.
High Grade 50μ Gold Plated RJ45 connectors.
Injection Molded boot/Strain Relief Boot for improved performance.
Soft Latch-cover design for easy depression.
Supports 10 Gigabit Ethernet, LSZH Jacket.
Color options: Blue, Green, Red, Yellow, Grey, White, also customized.
ROHS Compliant.

Conductor	Stranded Bare Copper
Conductor Size	28 AWG
Insulation	Polyethylene
Pulling Force	30 N Max
Plug Insertion Life, Minimum	750 insertion cycles
Outer Jacket	LSZH
Jacket Color	Blue, Green, Red, Yellow, Grey, White, Customized
Operating Temperature	-20 to +60C
Flammability Rating	IEC 60332-1
Pulling Tension, Maximum	100 N
Outside Diameter	5.3 mm ± 0.3 mm

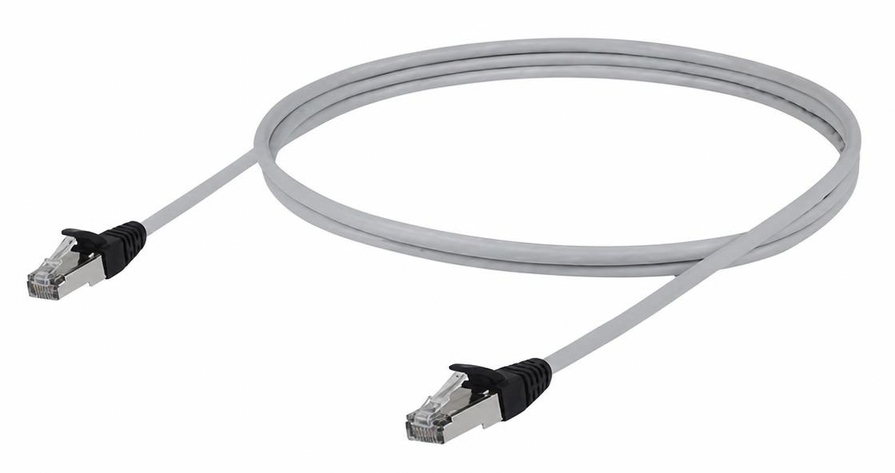

FCP6ASLUM10GY

Fabnet CAT6A FTP 28AWG Patch Cord, LSZH, 10M, Gray

FCP6ASLUM10W

FABNET Copper Ultra Slim Patch Lead, Cat-6A, Shielded, 10m, LSZH, White

FCP6ASLUM1W

FABNET Copper Ultra Slim Patch Lead, Cat-6A, Shielded, 01m, LSZH, White

FCP6ASLUM3W

FABNET Copper Ultra Slim Patch Lead, Cat-6A, Shielded, 03m, LSZH, White

Download Brochure - FCP6ASLUMxy
