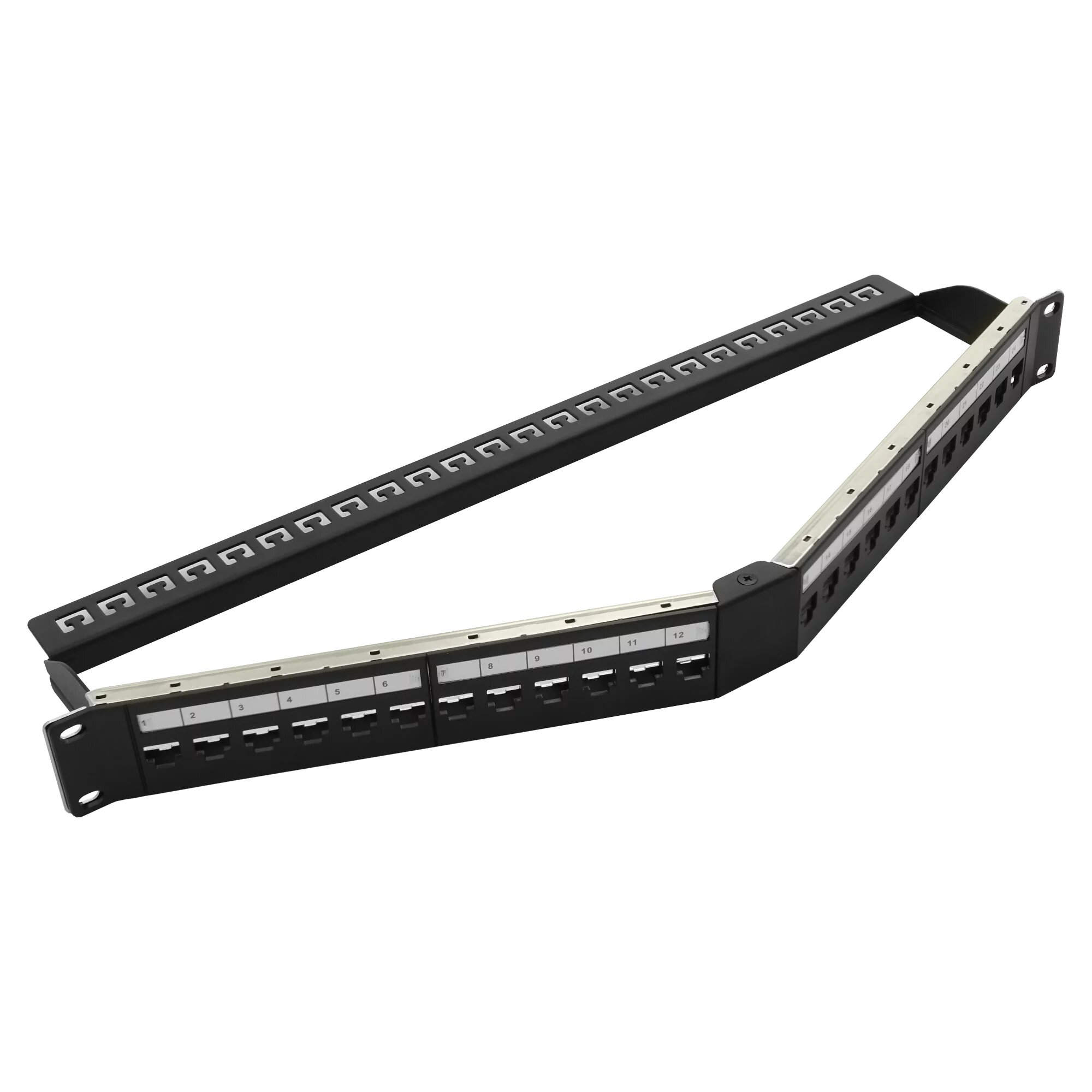

FABNET Copper Patch Panel, Cat6/6A, 24 Port, 1RU, Unshielded, Angled, Unloaded, Black

FCPL6U24A

The rack-mountable Patch Panel ensures quick and reliable installation of unshielded cables onto jacks. The Modular Patch Panel accepts up to 24/48 keystone jacks for unshielded applications in 1U/2U models complies with ANSI/TIA-568.2-D requirements. Patch panels are UL certified and RoHS compliant. Patch panels are delivered with removable cable strain relief bar by default which shall be attached to the rear side. We have 12 ports, 24 ports, and 48 ports flat design panels & Angled Panels.

Application

Standard 19” rack compatible.
Height: 1U (24 ports).
Suitable for Universal Keystone Jacks.

Specifications & Features

Suitable for category 6/6A UTP keystone snap-in jacks.
Retrofittable cable strain relief bar is delivered by default with Patch Panel.
Modern design and simplified mounting.
Patch panels are unloaded, customer shall order the keystone jack separately.
Complies to ANSI/TIA-568.2-D, ISO/IEC 11801-1 Class Ea.

Specifications Features

{ "Category": "Unshielded", "Material": "SPCC with Black Plating", "Panel Type": "Angled", "Panel Width": "482.60 mm (19”)", "Panel Height": "1U", "Outlet Style": "RJ-45", "No of Ports": 24, "Panel Model": "Un Loaded" }
