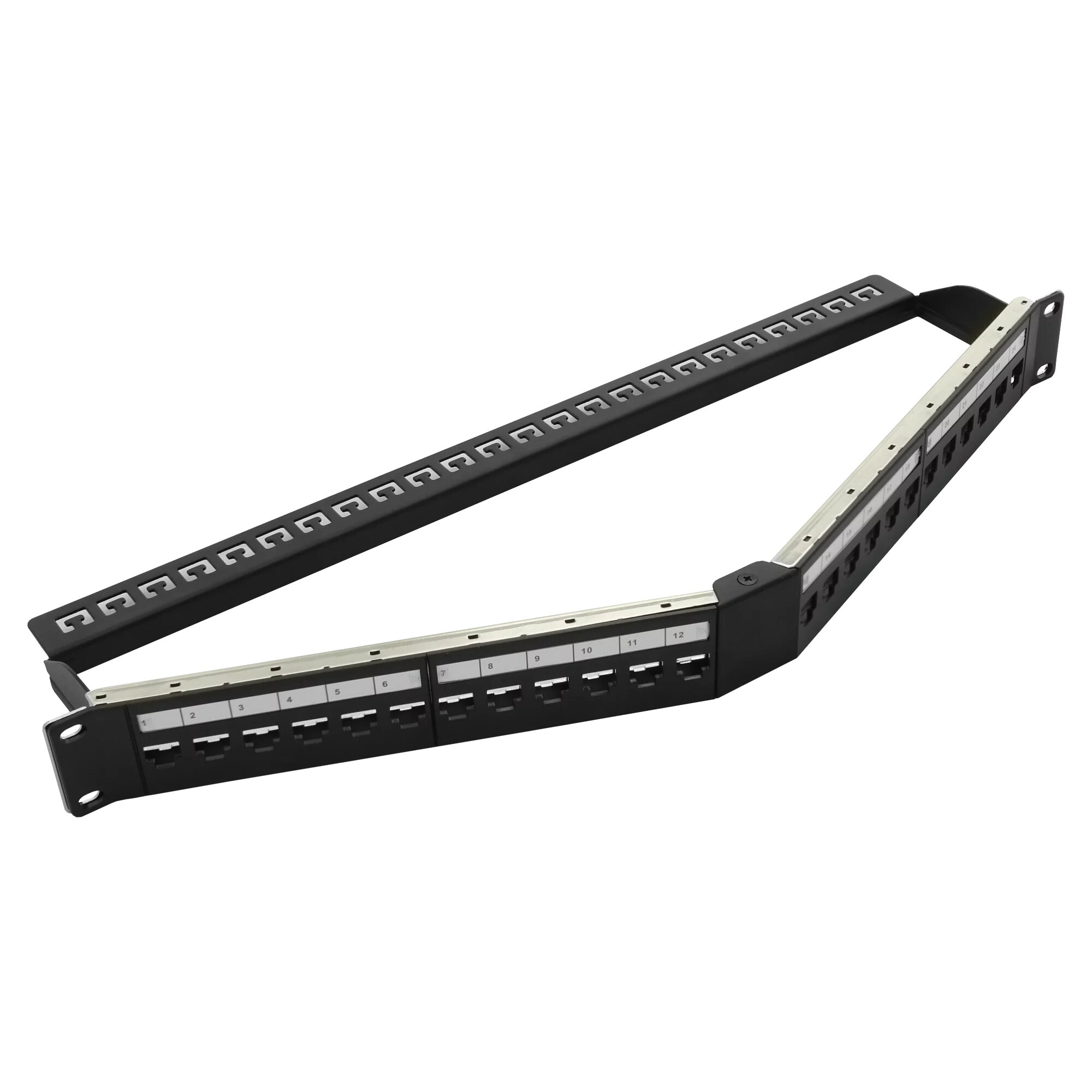

FABNET Copper Patch Panel, Cat6/6A, 24 Port, 1RU, Shielded, Angled, Unloaded, Black

FCPL6S24A

The rack-mountable Patch Panel ensures quick and reliable installation of shielded cables onto jacks. The Shielded Patch Panel accepts up to 24/48 keystone jacks for shielded applications in 1U/2U models complies with ANSI/TIA-568.2-D requirements. Patch panels are UL certified and RoHS compliant. Patch panels are delivered with removable cable strain relief bar by default which shall be attached to the rear side. We have 24 ports and 48 ports flat design panels & Angled Panels.

Application

Standard 19” rack compatible.
Height: 1U (24 ports).
Suitable for STP keystone jacks.

Specifications & Features

Suitable for category 6 /6A STP keystone snap-in jacks.
Retrofittable cable strain relief bar is delivered by default with Patch Panel.
Modern design and simplified mounting.
Patch panels are unloaded; customer shall order the keystone jack separately.
Complies to ANSI/TIA-568.2-D, ISO/IEC 11801-1 Class Ea.
ROHS compliance.

Specifications Features

{ "Category": "Shielded", "Material": "Cold Rolled Carbon Steel Sheets with Black Plating", "Panel Type": "Angled", "Panel Width": "482.60 mm (19”)", "Panel Height": "1U", "Outlet Style": "RJ-45", "No of Ports": 24, "Panel Model": "Un Loaded" }
