Application

Applications

• Supports category 6 (Class E) networks running up to 250MHz applications
• 10BASE-T, 100BASE-TX Fast Ethernet, 1000BASE-T (IEEE802.3)
• Indoor/Outdoor–Outdoor Ethernet Application

Specifications & Features

• The cable shall meet ANSI/TIA-568-D.2 Cat 6 and ISO/IEC 11801-2ND EDITION Class E performance requirements
• Cable jacket available in UV-stabilized outdoor-rated PE material
• 23AWG premium-grade copper conductor

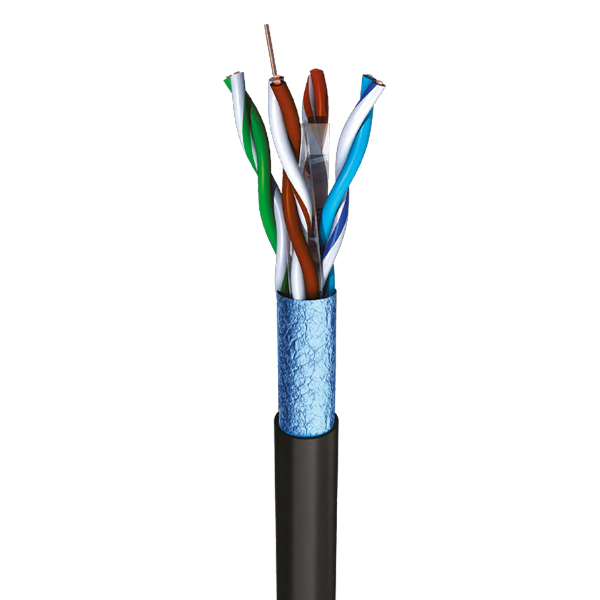

• F/UTP cable structure for better shielding in external interference environments

Specifications Features

{ "Conductor": "Solid Bare Copper", "Conductor Size": "23 AWG", "Insulation": "Polyethylene", "Number of Insulated Conductors": "8, twisted in 4 pairs", "Color Code of Pairs": [ "Blue x White/Blue", "Orange x White/Orange", "Green x White/Green", "Brown x White/Brown" ], "Overall shield": "Aluminum Foil Tape", "Outer Jacket": "UV- Resistant PE", "Jacket Color": "Black", "Overall Length (m)": "305 / 500mtr", "Short Term Bend Radius": "4xOD mm", "Long Term Bend Radius": "8xOD mm", "Operating Temperature": "-20 to +75C", "Installation Temperature": "0 to +50C", "Storage Temperature": "-20 to +80C", "Pulling Tension, maximum": "100 N", "Cable Outside Diameter": "7.1 mm ± 0.3 mm", "Packaging Type": "Reel" }
