FVPP3U25F

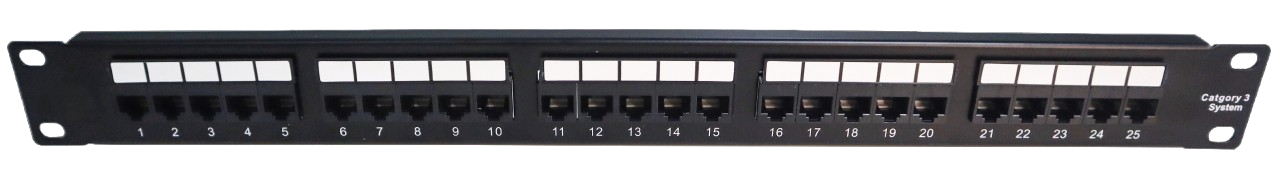

FABNET Voice Patch Panel, Cat3, 25 Port, 1RU, Unshielded, Straight, Loaded, Black

FVPP3U25F
FVPP3U25F

UTP voice category 3 patch panels are 19-inch rack-mountable IDC/PCB molded jack patch panels and are available in 25/50 port density. All panels comply with the EIA/TIA Standard for category 3, including ANSI/TIA-568-C.2 Every patch panel is made with high-quality materials, tested and certified by UL and RoHS compliant.

Application
Application
  • Telecommunications/Voice applications
  • Standard 19” rack compatible.
  • Height: 1U (25 ports).
Specifications & Features
  • Termination accepts 22, 23, 24 and 26 AWG (0.64-0.4) solid wires.
  • Easy wiring installation fit for 110 punch-down tools.
  • Modern design and simplified mounting.
  • Black electrostatic powder-coated corrosion-resistant steel.
  • Complies to ANSI/TIA-568.2-C, ISO/IEC 11801 Category 3.

Specifications Features
{ "Category": "Unshielded", "Material": "Black electrostatic powder-coated corrosion-resistant steel", "Panel Type": "Flat", "Panel Width": "482.60 mm (19”)", "Panel Height": "1U", "Insertion Life": "750 cycles minimum", "No of Ports": 25, "Panel Model": "Loaded" }
