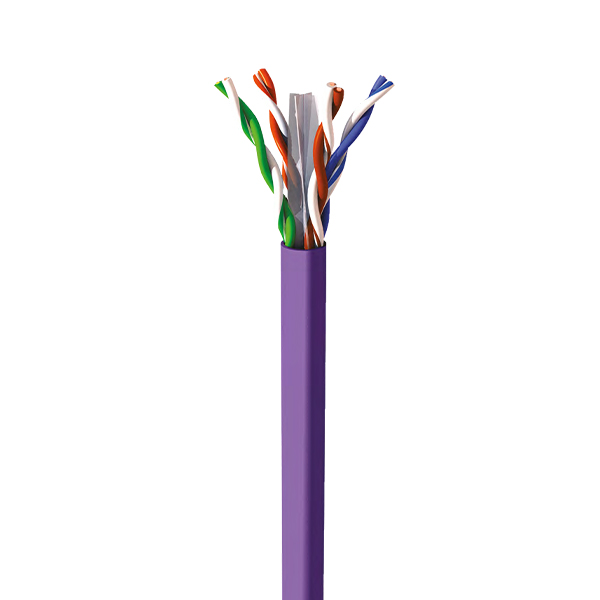

Cat 6A U/UTP solid cable in a 23 AWG conductor features more stringent specifications for crosstalk and system noise. Each Category 6A U/UTP exceed the minimum specified performance for Category 6A U/UTP cables and support all CLASS EA applications also 10 Gbps Data rates, PoE++, and are the ideal choice for high-speed LAN Solutions.
| Conductor | Solid Bare Copper |
|---|---|
| Conductor Size | 23 AWG |
| Insulation | Polyethylene |
| Number of Insulated Conductors | 8, twisted in 4 pairs |
| Color Code of Pairs |
|
| Outer Jacket | PVC |
| Jacket Color | White. Other colors available upon request |
| Overall Length (m) | 305 / 500mtr |
| Short Term Bend Radius | 4xOD mm |
| Long Term Bend Radius | 8xOD mm |
| Operating Temperature | -20 to +75C |
| Installation Temperature | 0 to +50C |
| Storage Temperature | -20 to +80C |
| Pulling Tension, maximum | 100 N |
| Cable Outside Diameter | 7.1 mm ± 0.3 mm |
| Packaging Type | Reel |
