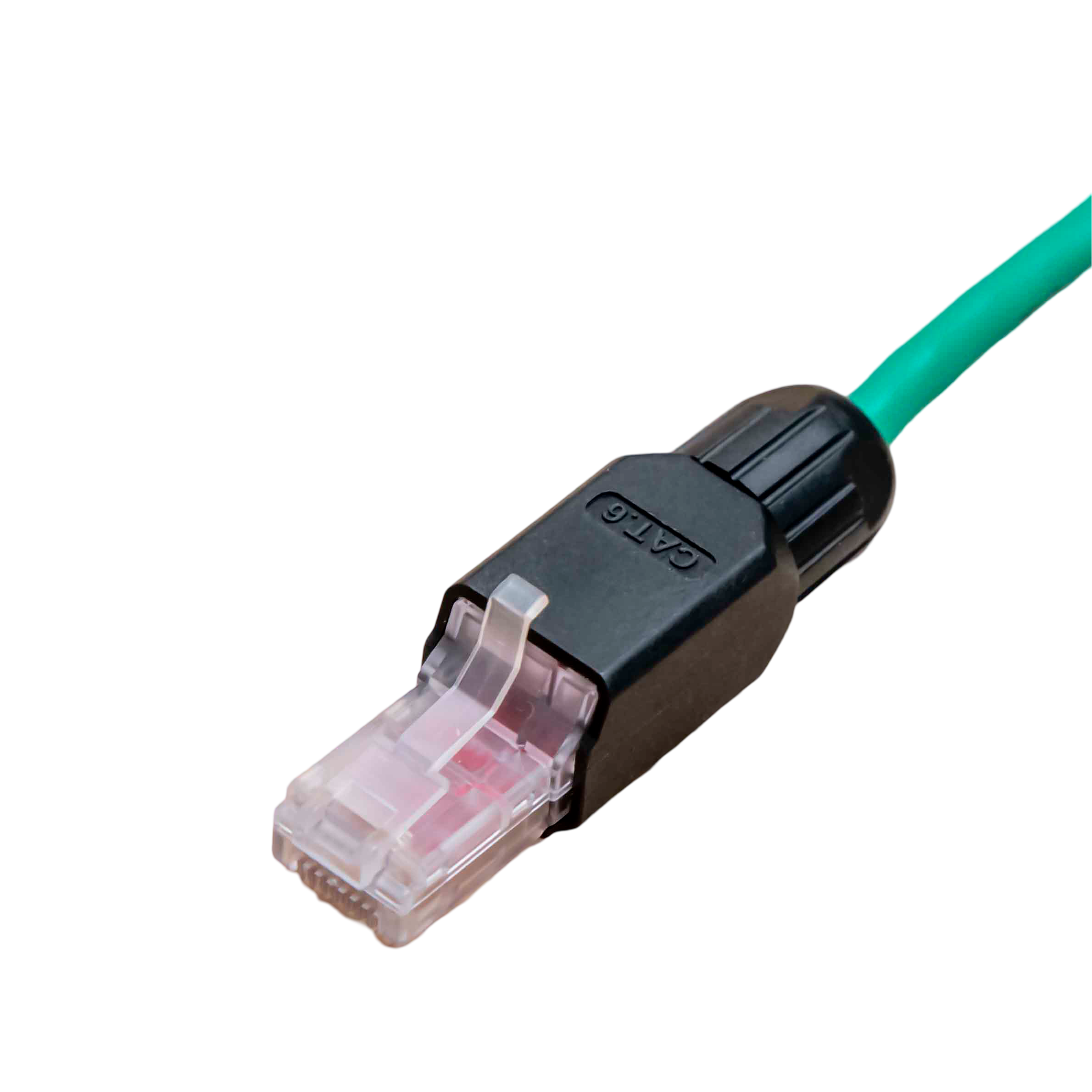

FABNET Field Termination Plug, Unshielded, Cat6A

FT6AUB

Cat6A Tool Free Short Field Term Plug RJ45 Connector 8P8C Modular Plug Providing outstanding network cabling performance and meeting the 4PPoE (IEEE 802.3bt) requirements, the Cat6A tool free short connector is designed to terminate with Cat6A cables and to be applied in direct plugging to the devices like CCTV, Wifi, Ceiling mount IP devices. The dust protection cap protects the RJ-45 contacts during installation and when the connector is not in use.

Application

Horizontal Distribution for direct plugging to devices like CCTV, Wifi, Ceiling mount IP devices.
10/100/1000/1G/10G BASE-T (IEEE 802.3).

Specifications & Features

23 to 26 AWG solid and stranded cables.
Universal color-coding according to T568A and T568B.
Complies to ANSI/TIA 568.2-D, ISO/IEC 11801 Class E.
UL CERTIFIED & ROHS COMPLIANT.
TIA-568¬D.2:2018-09 PoE / PoE +(IEEE 802.3af / IEEE 802.3at).

Specifications Features

{ "Termination Punch downs, minimum": "20 Times", "Compatible Gauge solid": "23 to 26-gauge", "Plug Insertion Life, minimum": "750 cycles min", "Plug Retention, Force minimum": "≤ 30 N", "Contact Material Type": "Phosphor Bronze", "Termination Contact Plating": "Gold", "Thickness": "50Micro-inch", "Cable O.D range": "5.5 -7.75mm", "Operating Temperature": "-10 to +60C", "Terminal": "Copper with tin Plated", "Category": "Cat6A Unshielded", "Body Material": "Housing: ABS, UL94- V0" }
