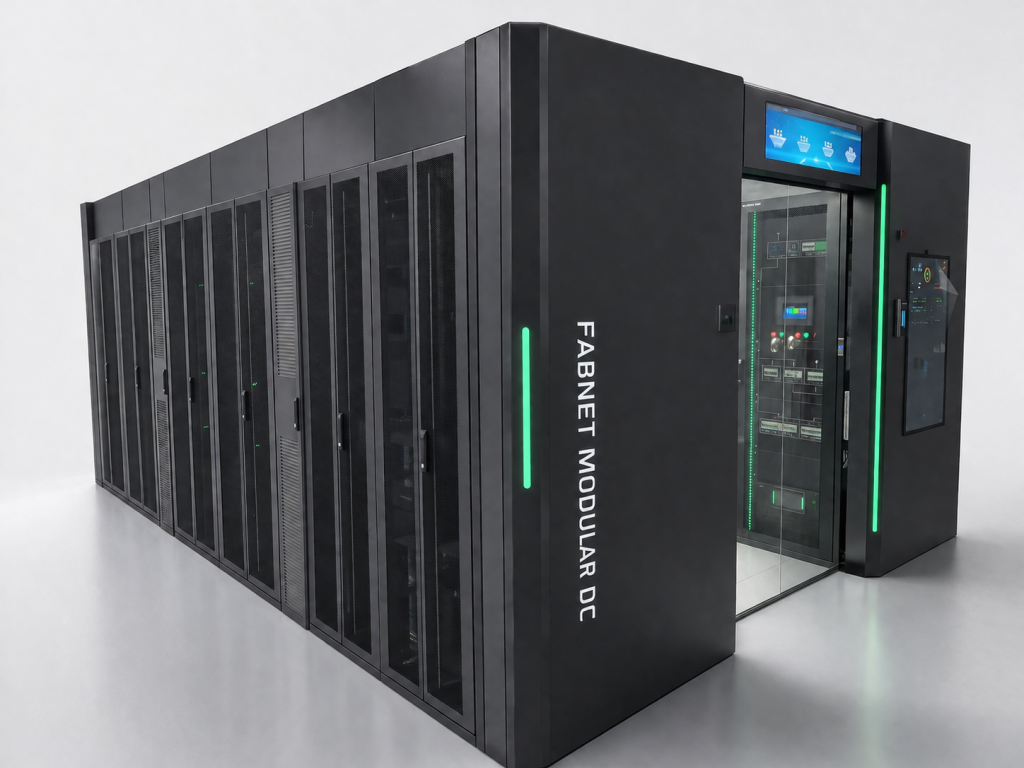

Micro Modular DC

Prefabricated Modular Data Center

42U Micro Modular Data Center, 2000mm Micro Modular Data Center, 2000mm hot aisle containment

Max. Rack Unit:

42U/45U

PUE:

1.4 Size:

600x1200x2000mm

PAD OS:

Win10

UPS:

Yes

Air Conditioning System:

Yes

Power Distribution System:

Yes

Standard:

GB/T 18233 (ISO/IEC 11801); GB 50311; GB50174; TIA/EIA568-C.2

FABNET Modular Data Center Solutions Prefabricated Modular Data Center

Micro Modular Data Center Application

Modular Data Center is designed for equipment rooms, and medium- and large data centers. Standardized components, de-engineered, ensured data center production in factories and realized the overall delivery to customers.

Customers can quickly acquire products as needed and expand capacity according to businesses.

Product Features

It contains a highly integrated design philosophy that the channel module serves as a server room in which it boasts UPS, an air conditioner system, a smart power distribution system, an environment monitoring system, an access control system, etc. Modular design makes it easier to install and maintain. Standard ports, prefabrication inspection, field deployment, and maintenance ensure a shorter online time.

Investment in infrastructure construction has decreased due to high protection ratings, low noise, and easy-to-deploy under harsh environmental conditions.

Thanks to highly efficient green energy reduction, dual conversion online UPS, DC frequency conversion fan, smart power distribution as well as a supervision and control system, the cabinet guarantees uptime availability and stability. The PUE rating drops to 1.4.

The front and rear doors can be customized for various types of light alarms under different working conditions. The touchscreen control panel can record condition-based information in real time.

Various enclosures, cable trays, and fire-resistant retractable skylights are available.

Sophisticated column air conditioners, smart power distribution cabinets, batteries, and fire extinction systems can all be flexibly configured according to different demands to provide users with a comprehensive solution and the best quality services.

Application Standards

Type	Item	Specifications
Server Rack	Standards	In accordance with GB3047.2, IEC297-2, DIN41491 PART1, DIN41494 PART7, compatible with ETSI
	Size	600X1200X2000mm (42U) W x D x H
	Load-Bearing Capacity	Static load capacity 1,800 kg, dynamic load capacity 800 kg, 9.0 magnitude earthquake resistance
	Ventilation Rate of Perforated Door	Single-open perforated front door, double-open perforated rear door (hexagon hole, round hole, waist hole available), ventilation rate up to 85%
Power Distribution Units	Rated Power	Single- or three-phase input, 50/60 Hz, 20 to 300 KVA
	Brands of Moulded Case Circuit Breaker	Schneider, ABB, Siemens (customized)
	Size	600X1200X2000mm (42U) W x D x H (customized)
	Functions	Single/ two-way busbar, smart monitoring gauge in the backbone and the branch, anti-surge protection switch, and protector
Air Conditioning System	Air Conditioning Type	Precision air conditioner, column-type air conditioner, rack-mounted air conditioner, air conditioner in small server room
	Cooling Type	Water cooling, air cooling, frozen water cooling
	Way of Isolation	Cool and hot aisle containment
UPS System	Rated Capacity	25 to 300KVA
	Rated Input	3-phase, 5-wire 380Vac, 50/60Hz
	Working Capacity	Backbone 95%; ECO mode 98%
	Storage Battery	Maintenance-free, lead-acid batteries
Environment Monitoring System	Environment Monitoring	Hygrometer and thermometer, smoke alarm, water leakage alarm, door access, HD cameras
	Monitoring Equipment	Precision power distribution cabinets, UPS, air conditioning, storage batteries, fire fighting systems
	Alarming Methods	24-inch touch display, local sound and light alarm, voice alarm, SMS alert
Structured Cabling	Transmission Performance	Cat6/cat6a copper cable, OM3/OM4 multimode fiber optic cable, OS2 singlemode fiber optic cable
Structured Cabling	Safety Performance	IEC60332-3 flame retardant, safe and environmentally friendly
